Australian Shell Steel Structure Gas Station Canopy
Australian Shell Steel Structure Gas Station Canopy
Australian Shell Steel Structure Gas Station Canopy
Australian Shell Steel Structure Gas Station Canopy
Australian Shell Steel Structure Gas Station Canopy
Australian Shell Steel Structure Gas Station Canopy
Australian Shell Steel Structure Gas Station Canopy
Australian Shell Steel Structure Gas Station Canopy
Australian Shell Steel Structure Gas Station Canopy
Australian Shell Steel Structure Gas Station Canopy
Australian Shell Steel Structure Gas Station Canopy
Australian Shell Steel Structure Gas Station Canopy
Australian Shell Steel Structure Gas Station Canopy
Australian Shell Steel Structure Gas Station Canopy

Australian Shell Steel Structure Gas Station Canopy

Steel structure is mainly made of steel beam, steel column and steel support, the welding, bolt connection or rivet connection is required between each component or part. As the light self-weight and it’s easy to install, it is widely used in large warehouse and workshop, sports hall, petrol gas station canopy and other related fields. All materials can be completely recyclable which is in accordance with the sustainable development strategy.

Technical Advantages

Petrol station canopy is an important part of the gas station, play a role of shading, rain, image publicity, etc.

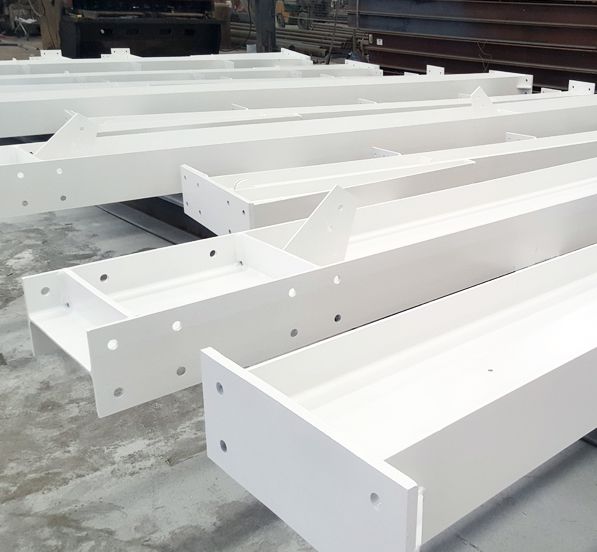

Compared with other construction,this structure has many advantages in design,working process,lower cost and flexible location. We produce the steel parts with automatic machine in high-precision and identify the products according to different series and standards.

Structural design, detail design, test installation of computer, fabrication, construction site installation, all of these can be processed with small time difference. The appearance of steel components we made is artistic . Thanks to the anti-corrosion after galvanizing and painting, which help reduce maintenance cost.

Product Specifications

Structure Type:  Light Steel

Application:  Petrol Gas station Canopy

Design Standard:  ASTM

Size:  25mx12mx5m

Wind Zone:  225kph

Seismic Zone:  4(Z=0.4)

Certificates:  ISO, CE, SGS

Steel Material:  Q345B

Surface Treatment:  Hot dip galvanizing and paint

Roof panel:  Color steel sheet

Shipping:  30 working days after designing drawings are confirmed with signature

Installation:  Supply supervision

Packaging Details:  Use packing rack for large steel components, small components are putted into wooden case

Design life:  50 years

Hoisting technology

Given the problems such as long-span, many space frame nodes, poor stability, and difficult installation of steel structure space frame canopy of gas stations and gas stations, the construction method of preassembled steel structure grid canopy and overall lifting on the ground is as follows:

(1) The unit extension bulk method is adopted on the ground, along with the reference space frame, to both sides of the expansion, in this installation sequence extension, until the assembly of the entire space frame is completed.

(2) According to the shape, center of gravity, and technological requirements of the steel structure space frame canopy, 8 hoisting points are selected, the crane station is reasonably arranged, and the whole hoisting is in place at one time, which realizes the safety, efficiency, and accuracy of steel structure space frame canopy installation.

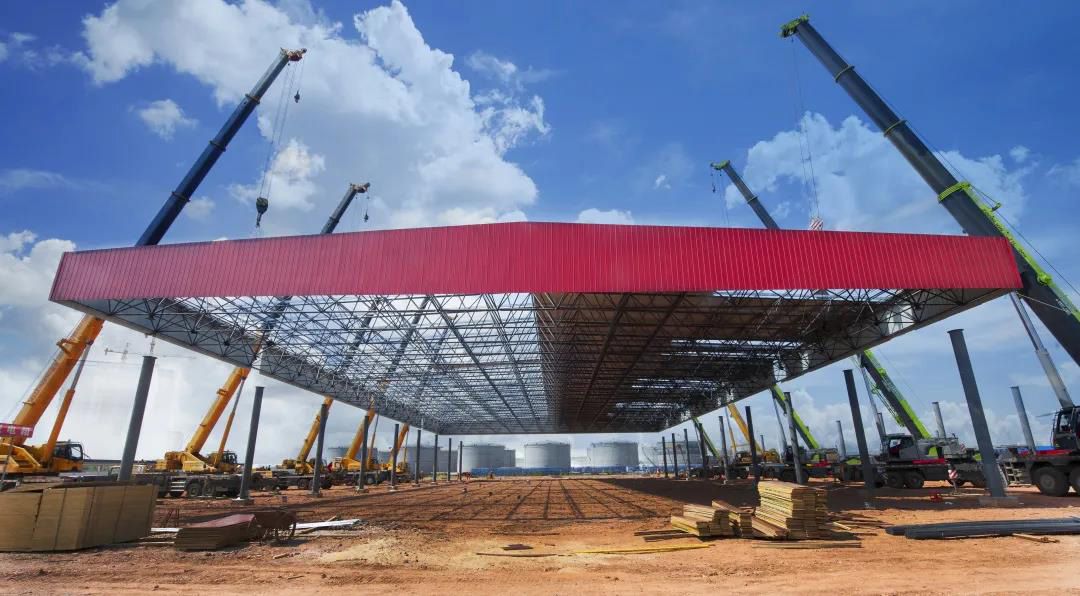

Overall hoisting of gas station
