Customize Tensile Membrane Structures For Outdoor Football Stadium Roof

1、The outdoor football stadium tensile membrane structures roof projected area of the stadium stand membrane structure is 72X23.5=1692m², and the unfolded area is 1800m². The stadium tensile membrane canopy structure consists of 9 conical membrane structural units.

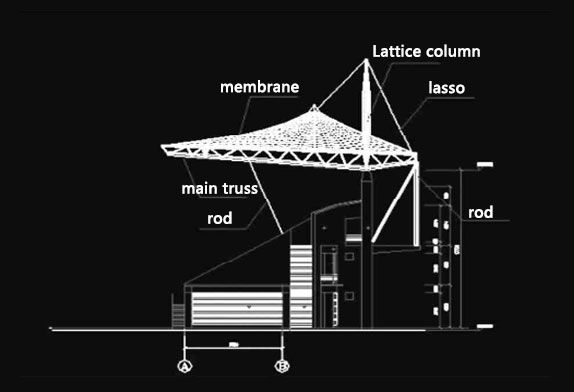

2、The whole tensile membrane structure bleacher canopy is located on the concrete column of the grandstand. The main system of the structure is composed of 8 triangular space trusses with a spacing of 8 meters and a cantilever of 20 meters. , ensuring stability in the structural plane. Secondary trusses are arranged at the front end of each main truss and between the columns so that the entire structure forms a space stress system integrated with steel, cables and membranes. The safety and stability of the structure are well guaranteed.
