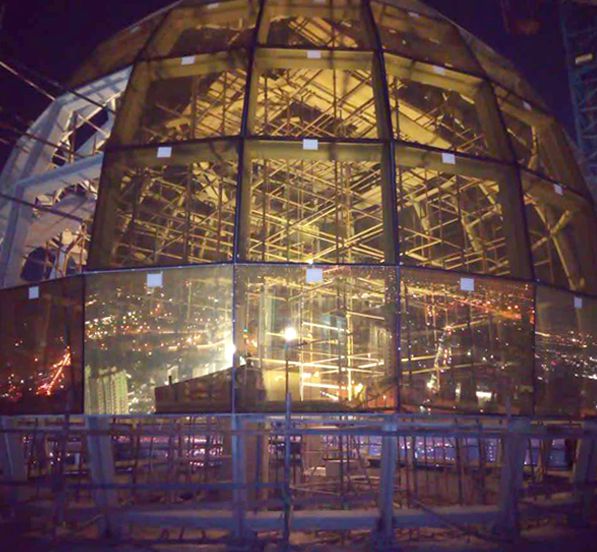

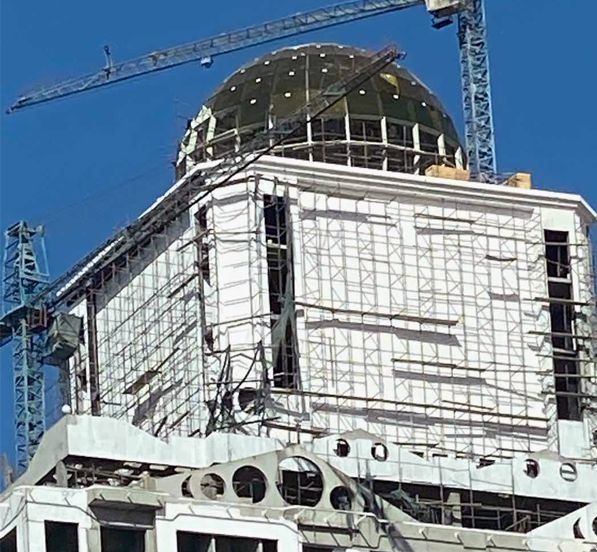

Product Category1)This project is a steel structure glass dome building roof.
2)The location is Dubai, United Arab Emirates.

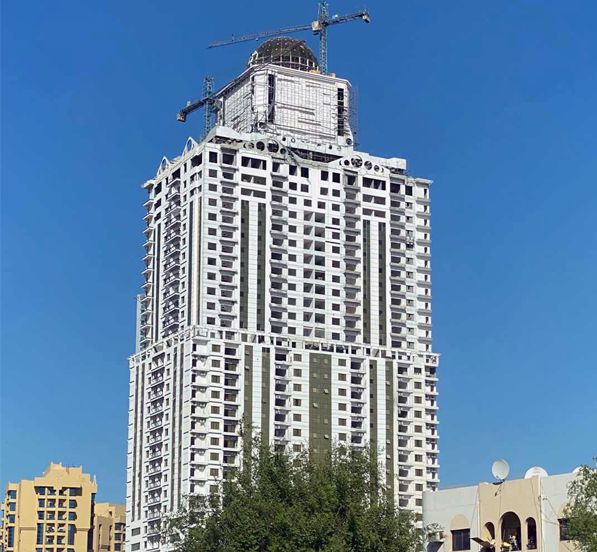

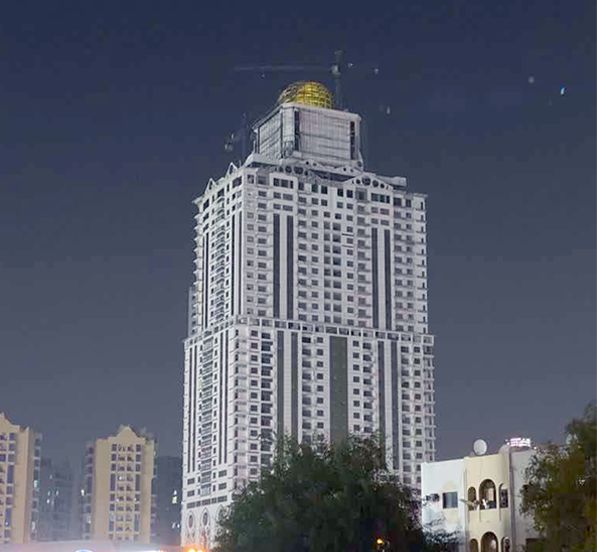

3)It is located above a 150m high building-the second largest clock tower in the world.
4)The main frame is a steel structure.
5)The roof is made of hollow laminated tempered glass.
6)The structure has a diameter of 15m and a height of 15m. It is 12m and is supported at 24 points on the ring beam.
In this dome glass roof project, In order to reduce the amount of on-site welding, shorten the installation period, and ensure the accuracy of assembly and welding, under the conditions of transportation and packing, we adjust most of the components to bolt connections to the greatest extent. The entire construction process at the construction site only needs A small amount of welding.
| Structure Type: Light Steel |
| Application: Glass Dome Building |
| Design Standard: ASCE |
| Diameter: 15m |
| Height: 12m |
| Seismic Zone: 4(Z=0.4) |
| Certificates: SONCAP, CCVO, SGS |
| Steel Material: Q235B |
| Shipping: 30 working days after designing drawings are confirmed with a signature |
| Installation: Supply supervision |
| Packaging Details: Use a packing rack for large steel components, small components are put into wooden cases. |
| Design life: 50 years |
