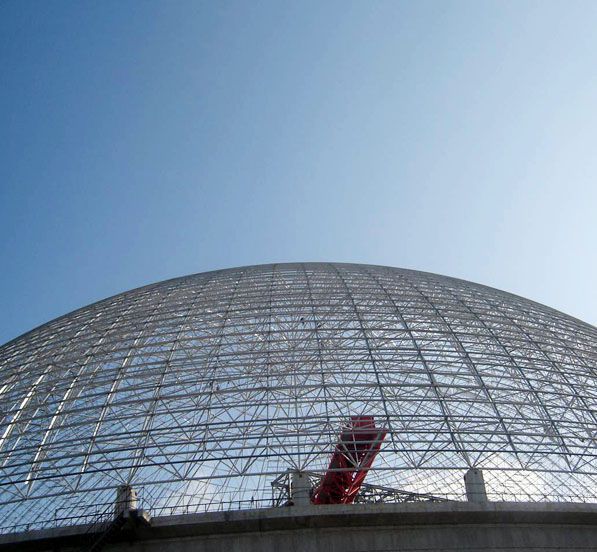

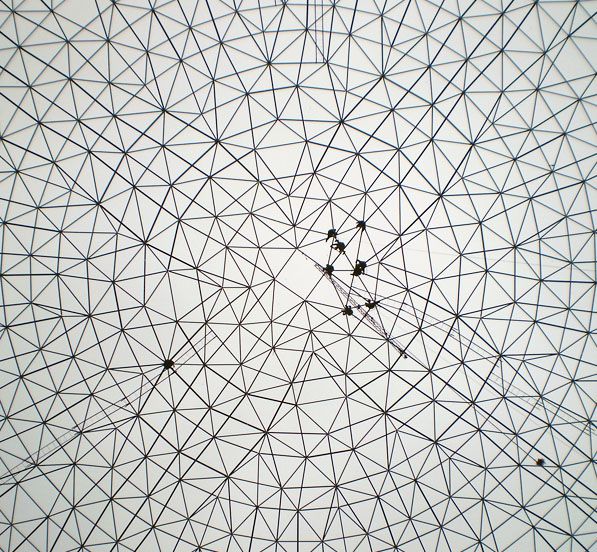

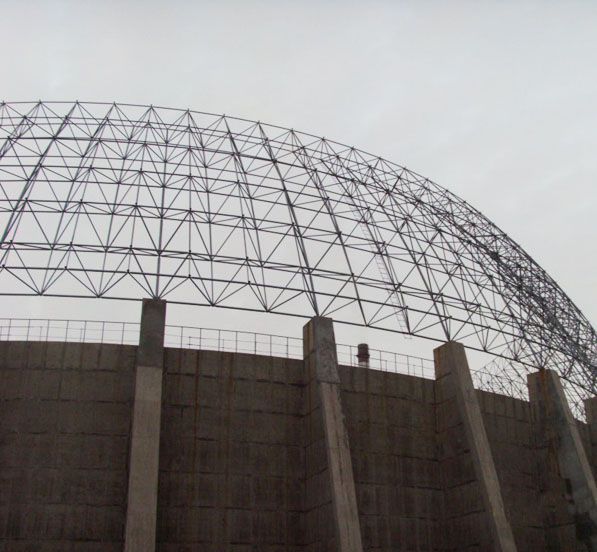

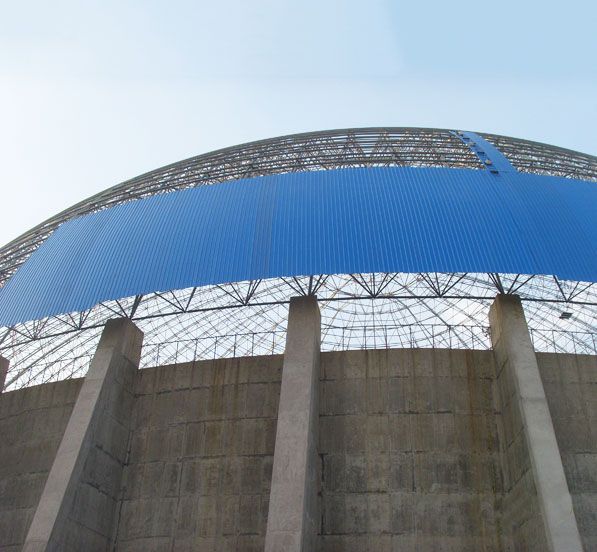

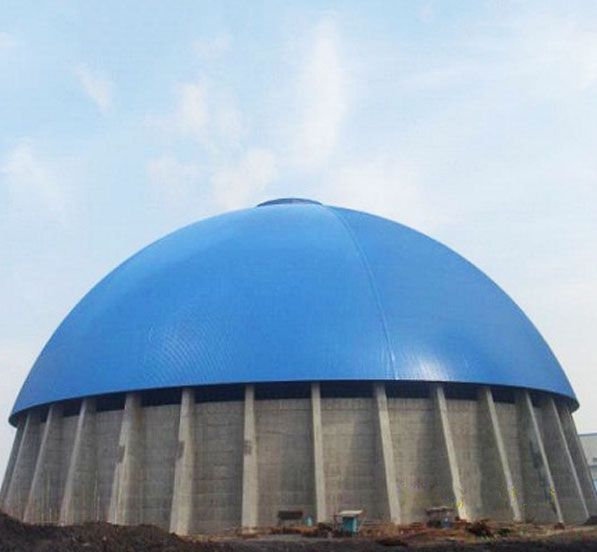

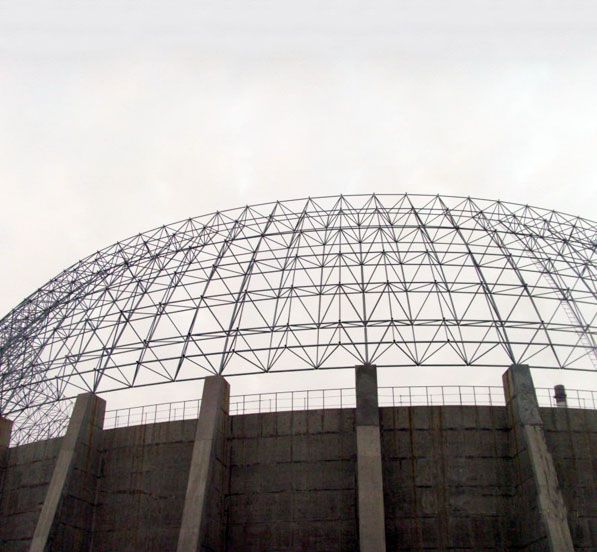

The NINE DRAGONS coal storage roof is in method of two layers dome space frame structure with bolt ball connection, and the span is 102.8m. The height of space frame is 58.29m, foundation height is 19.25m, the surface of space frame is plated with epoxy zinc rich primer and PU covered, the roof adopts colored steel panel with SMP covered, natural lighting use FRP plate.

Technical Advantages

The closed dome pro-environment coal storage shed by LF design can effectively avoid the dust produced in the process of loading and unloading, transportation and storage, which can protect the surrounding environment well and further improve the staff’s working environment.

Product Specifications

Structure Type:  Light steel

Application:  Coal yard storage

Designed Capacity:110000T

Span:102.8m (Diameter)

Height:58.29m

Foundation Height :19.25m

Wind load:0.50KN/m2

Seismic load:7 Dgree

Seismic acceleration:0.10g

Certificates: ISO, CE, SGS

Steel Material: Q345B

Surface Treatment:Epoxy zinc rich primer and PU finish

Roof panel: Color steel sheet (SMP finish)

Natural lighting roof:FRP

Shipping: 45 working days after designing drawings are confirmed with signature

Installation:  Supply supervision

Packaging Details:  Use packing rack for large steel components, small components are putted into wooden case.

Design life:  50 years
