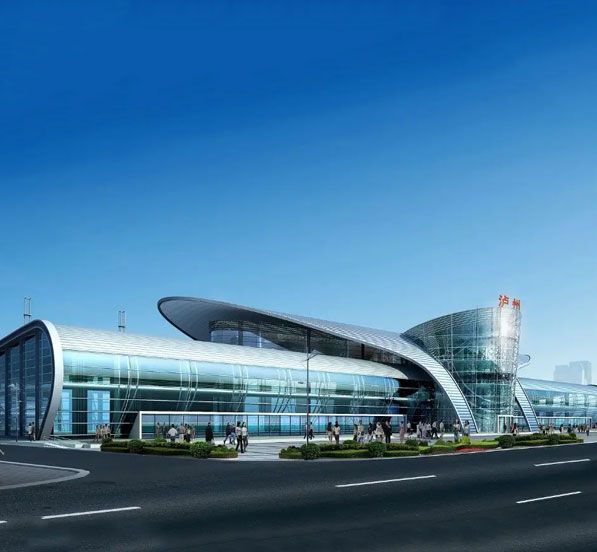

Product Category♦Luzhou Passenger Railway /Train Station is located in Luzhou City, Sichuan Province;

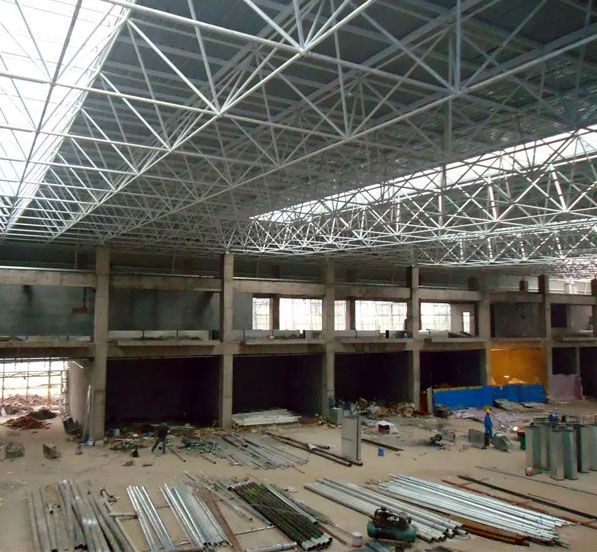

♦Railway /Train station waiting hall space special-shaped double-layer space frame roof structure;
♦Railway /Train Station roof space frame building area 12500m²;
♦The support form of the space frame is the point support of the upper chord column using welded hollow ball nodes;
♦Steel Q355B;
♦The structural safety level is two;
♦6-degree seismic fortification;
♦Designed to be used for 50 years
The space frames structure has been widely used in large and medium-sized public buildings such as bus /railway /train station stations, stadiums buildings, and other large and medium-sized public buildings in recent years due to its advantages of a lightweight, high rigidity, good seismic performance, on-site installation, and convenient construction.
(1)In the steel structure roof design of railway passenger stations, due to its clear force, it can meet the requirements of large space and large span, has good seismic performance, strong adaptability to planes, and is widely used.
(2) In A continuous space with a strong sense of sequence, the indoor space is wide and complete; there are fewer supporting columns and larger spaces between the columns; the space frame can be exposed to create a strong sense of rich structural space.
(3)The space frame structure is a commonly used structural form in modern railway passenger stations. The cost of design and construction is relatively simple, it can meet the requirements of more complex space and shape design, and the plasticity is relatively strong.
(4)The space frame steel structure is used to build a large-span architectural form. The structural form reflects the beauty of the clear force transmission process. The structural form and cultural intention are unified so that the space aesthetics and the rigor of the space are fully revealed.
