The Republic of Marshall Islands Space Frame Stadium Roof Structure
The Republic of Marshall Islands Space Frame Stadium Roof Structure
The Republic of Marshall Islands Space Frame Stadium Roof Structure
The Republic of Marshall Islands Space Frame Stadium Roof Structure
The Republic of Marshall Islands Space Frame Stadium Roof Structure
The Republic of Marshall Islands Space Frame Stadium Roof Structure
The Republic of Marshall Islands Space Frame Stadium Roof Structure
The Republic of Marshall Islands Space Frame Stadium Roof Structure
The Republic of Marshall Islands Space Frame Stadium Roof Structure
The Republic of Marshall Islands Space Frame Stadium Roof Structure

The Republic of Marshall Islands Space Frame Stadium Roof Structure

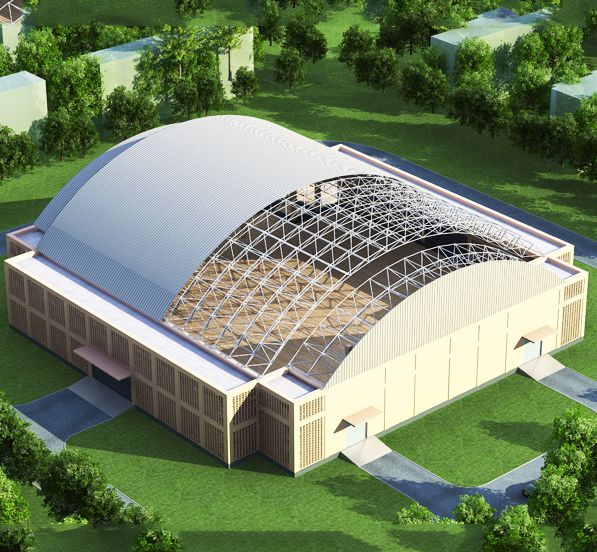

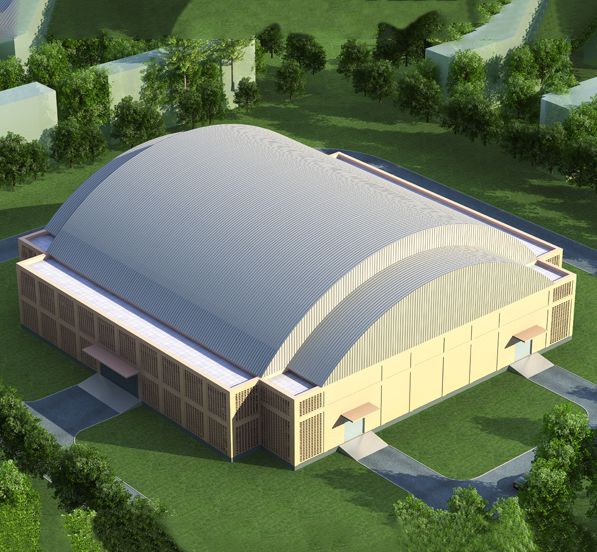

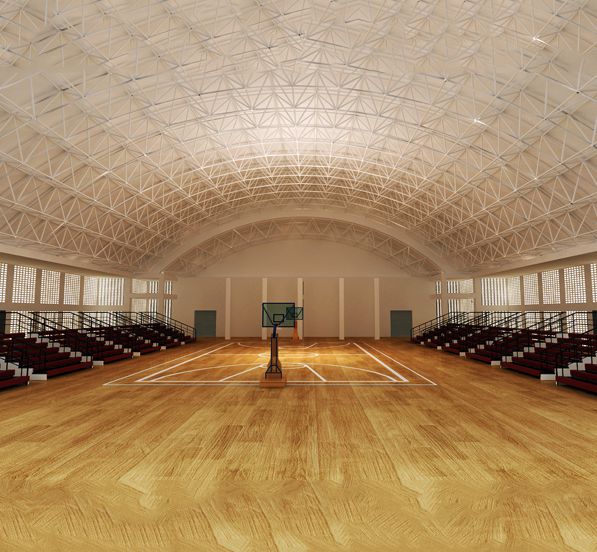

1.Project name:Educational Culture Building Space Frame Roof Structure

2.Project location: Majuro, The republic of Marshall

3.Projected area:2597m2

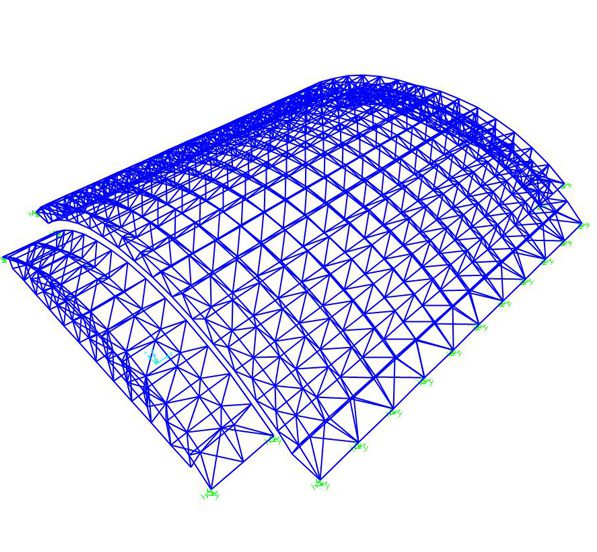

According to the characteristics of the project, this project adopts rectangular square pyramid space frame structure with bolt-ball joint.

Technical Advantages

Space frame is a spatial structure formed by connecting multiple member through joints in a certain grid form.The basic units that make up the space frame include pyramid, triangular body, cube, and square pyramid, etc., which have the advantages of the space force, light weight, large rigidity and good seismic performance.The space frame structure is a high order hyperstatic structure system, which satisfies the latest design concept of steel structure and gives full play to the spatial stress characteristics of the structure.

Product Specifications

Structure Type:Light Steel

Application:Stadium Roof

Design Standard:AISC-ASD89、ASCE7-10、 Uniform Building Code 1997

Calculation Software:SAP2000

Project Location:Majuro, The republic of Marshall

Projected Area:2597m2

Span:45m

Wind Zone:225kph

Seismic Zone:4(Z=0.4)

Certificates:ISO, CE, SGS

Steel Material:Q235B

Surface Treatment:Hot dip galvanizing and paint

Roof:Purlin +Al-Mg-Mn plate +waterproof breathable film+ rock wool

Shipping:45 days against receipt of down payment

Installation:Supply supervision

Packaging Details:Use packing rack for large steel components, small components are putted into wooden case

Design Life:50 years
