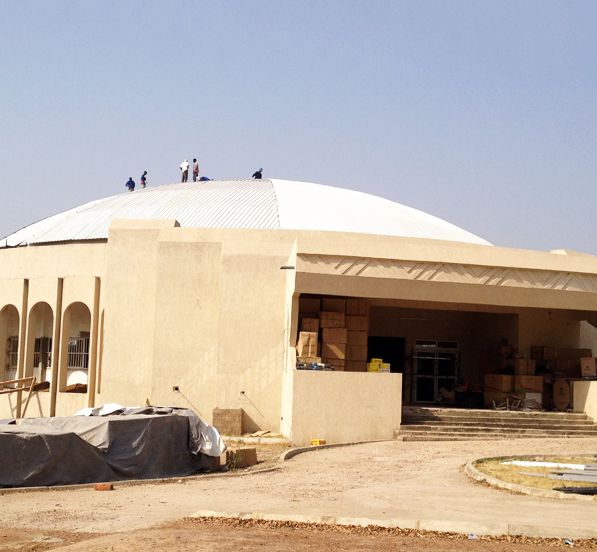

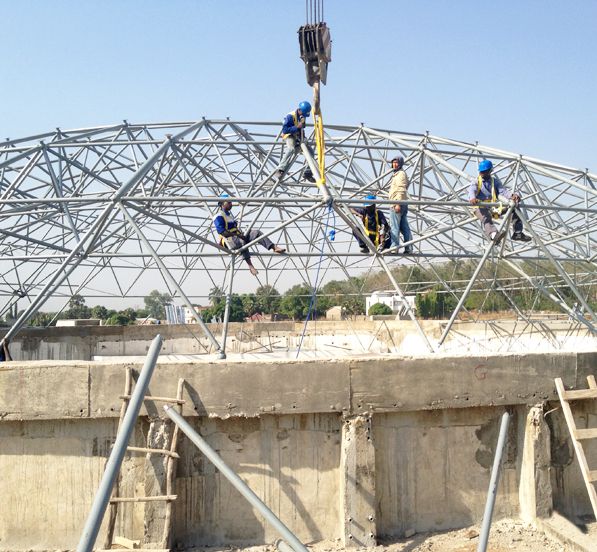

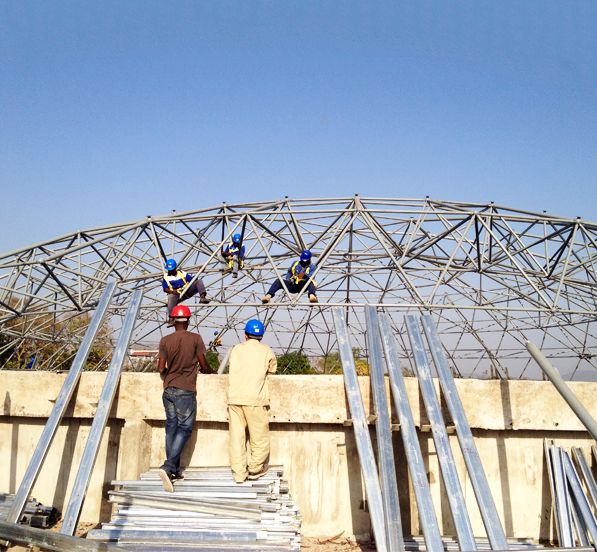

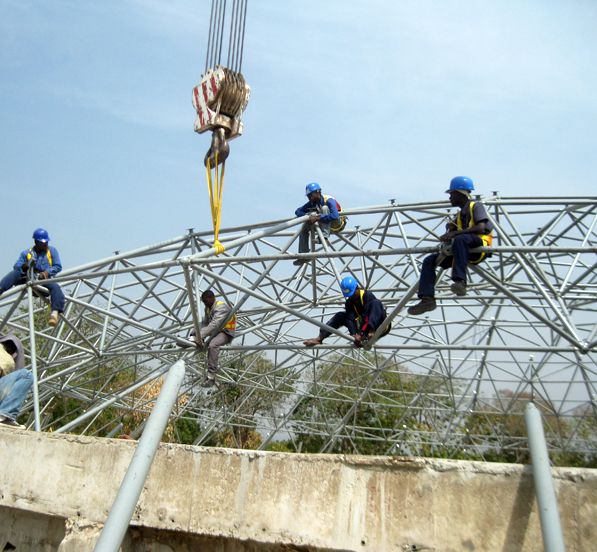

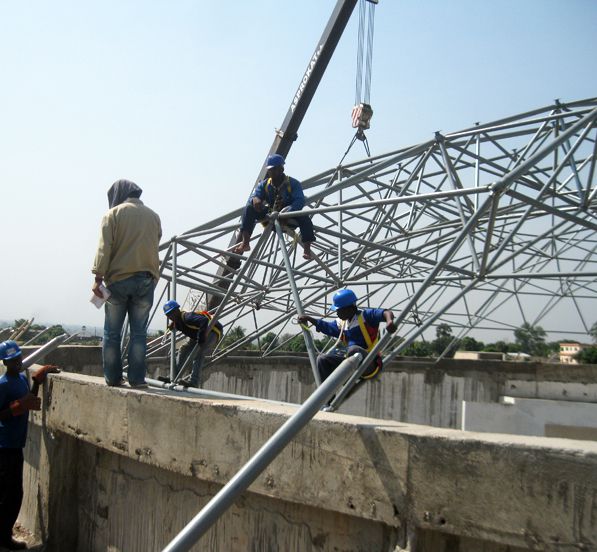

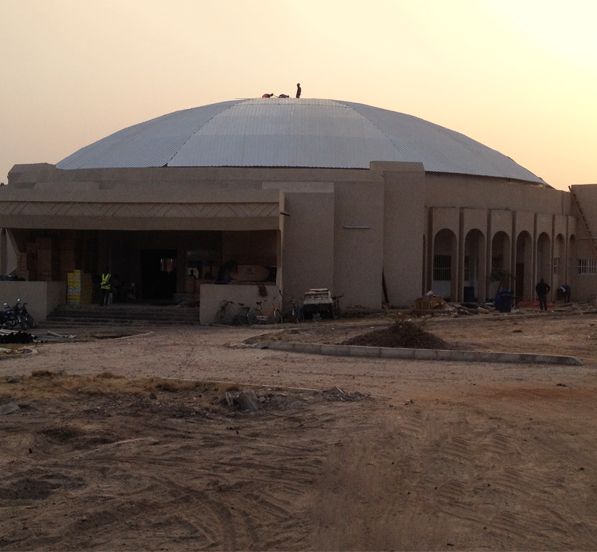

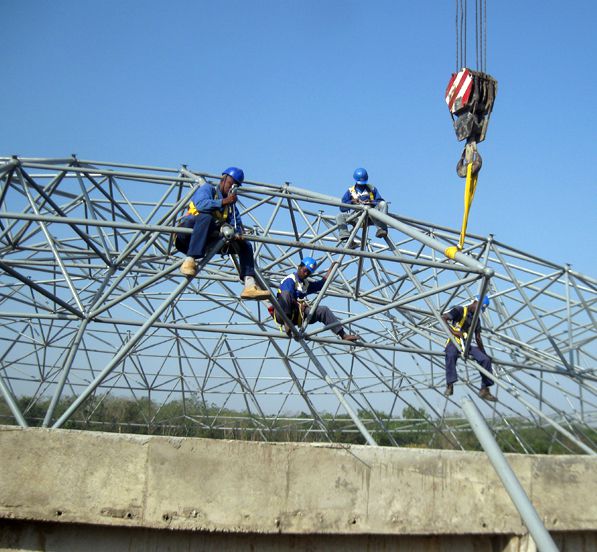

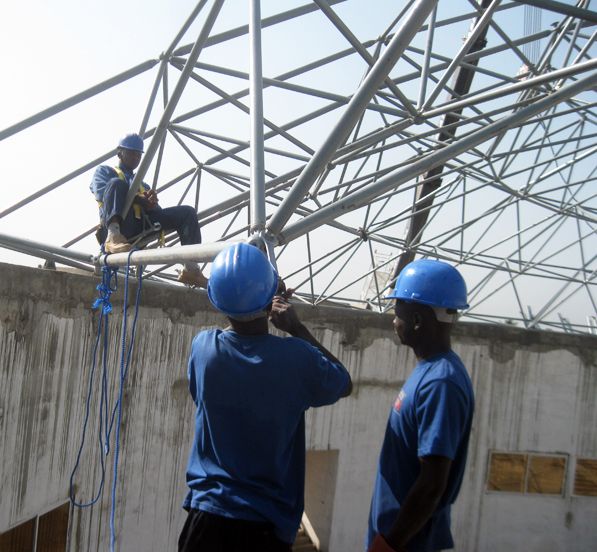

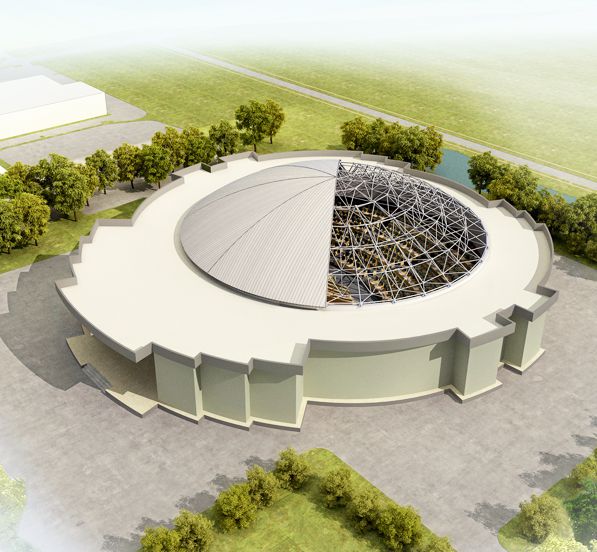

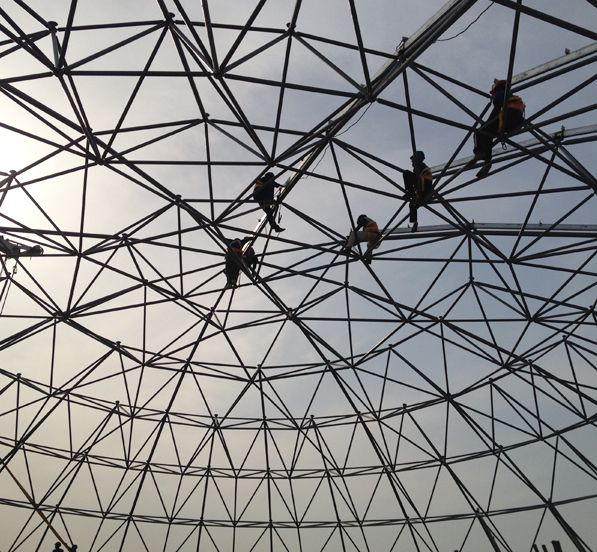

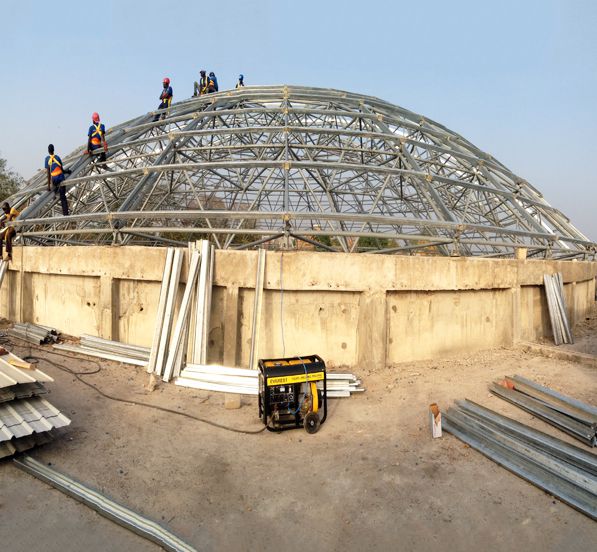

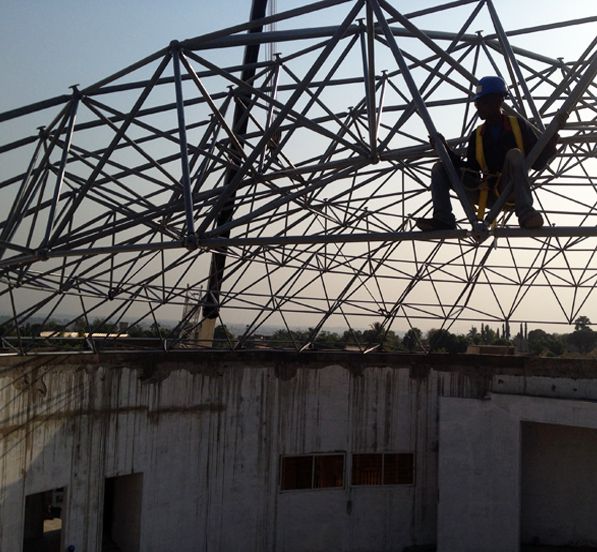

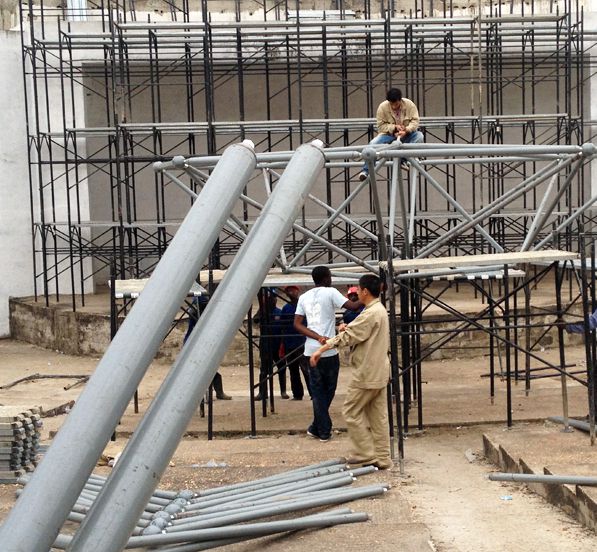

The conference hall roof project is located in Lome, Togo, which was finished in 2014. The roof adopts dome space frame structure which is a truss-like, lightweight rigid structure constructed from interlocking struts in a geometric pattern. The roof panel adopts the sandwich panel.

Technical Advantages

The roof adopts a space frame structure which makes the whole weight of the structure very light. Also, it does not need to weld on site which speeds up the installation, more important it can guarantee the quality. Considering the conference hall project’s span is more than 30 meters without no column inside it, when the engineers design, they provide the space frame structure roof plan because the space frame structure is an economical means of covering large column-free spaces for a variety applications, including sports structures, aircraft hangars, assembly halls, etc.

LF company is a renowned designer and fabricator of structural and architectural space frame structure. It focused on lightweight, structurally sound components and recycled materials with a focus in installation flexibility and low maintenance finish options that assure long life quality, function and appearance. LF provides complete design and fabrication service from consultation to engineering and from manufacturing to installation.

Product specifications

Structure Type: Light Steel

Application: Conference Hall Roof

Design Standard: AISC

Span: 34.4m

Height:5.806m

Foundation Height:4.5m

Wind Zone: 31.2m/s

Seismic Zone: Ⅰ

Certificates: ISO, CE, SGS

Steel Material:  Q235B,High strength bolt:40Cr,Bolt ball:40#

Surface Treatment: Epoxy zinc-rich primer;Micaceous iron epoxy medium paint;PU finish coat

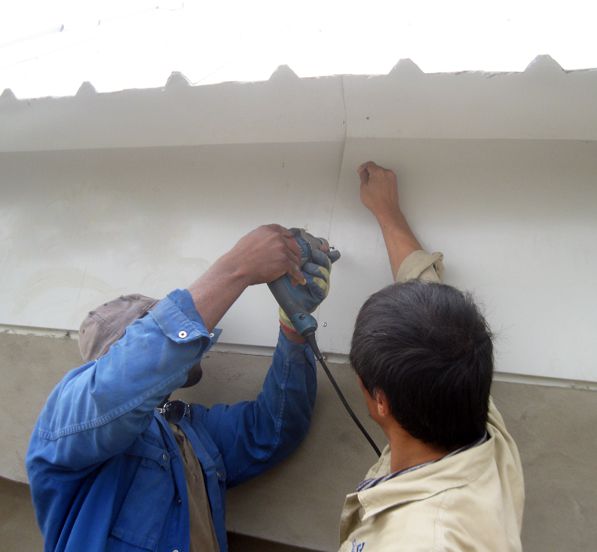

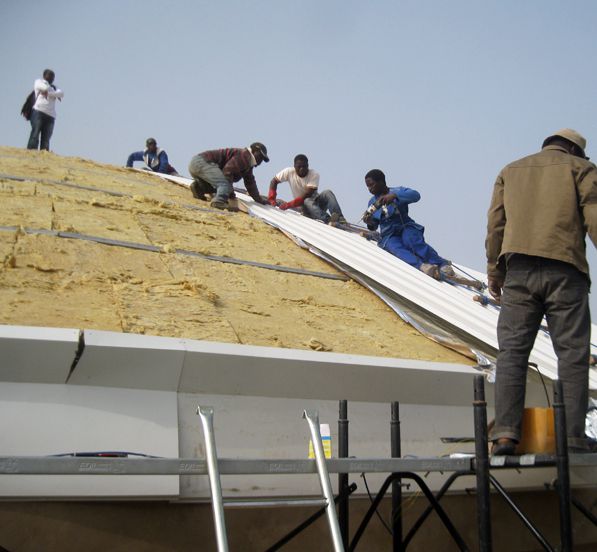

Roof panel: Purlin + colored bottom plate + waterproof breathable film + rock wool + Z purlin + Aluminum foil + colored top plate

Shipping: 45 working days against receipt of down payment

Installation:  Supervision by LF engineers

Packing Details: Use packing rack for large steel components, small components are putted into wooden case

Design life: 50 years
