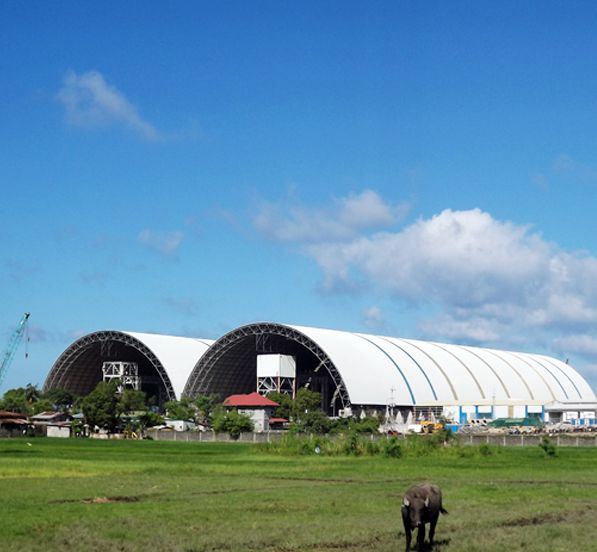

The Putting Bato Power Plant Coal Storage Space Frame Project in the Philippines was completed on August 20, 2014 and has a total construction period of 18 months. LF Company undertakes the design, production and installation of the closed coal storage bunker project.

Technical Advantages

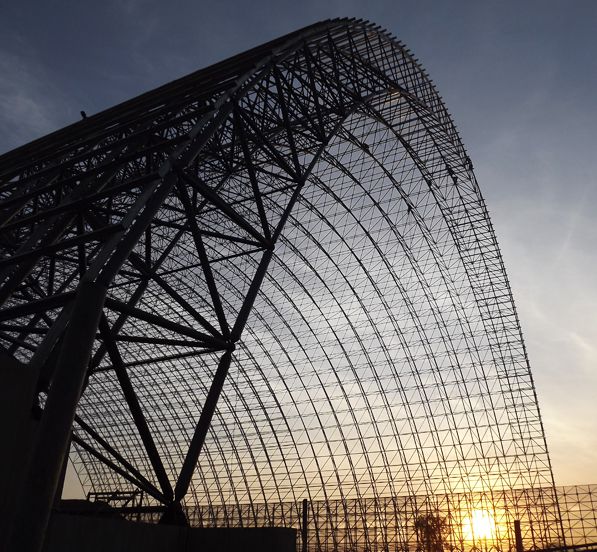

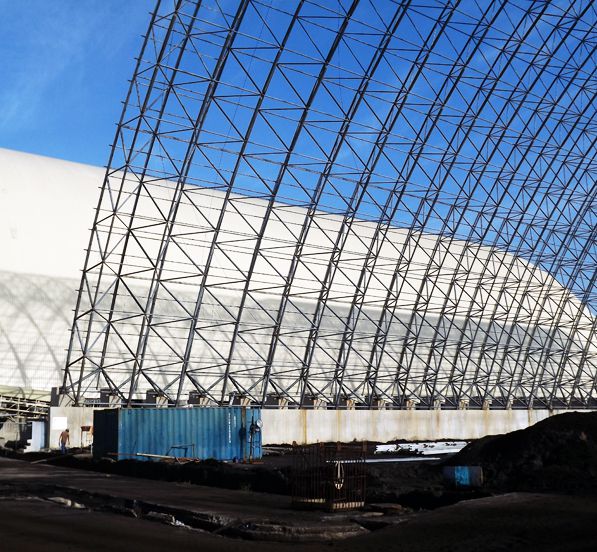

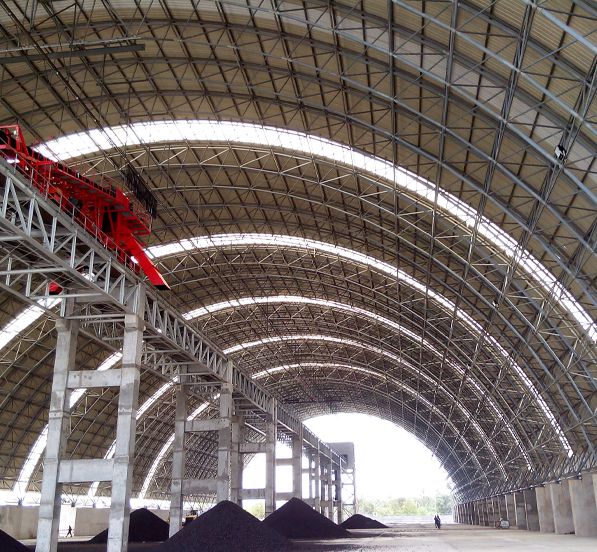

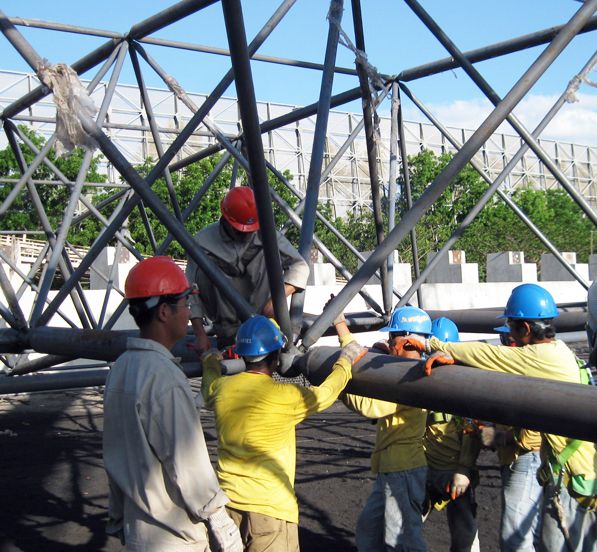

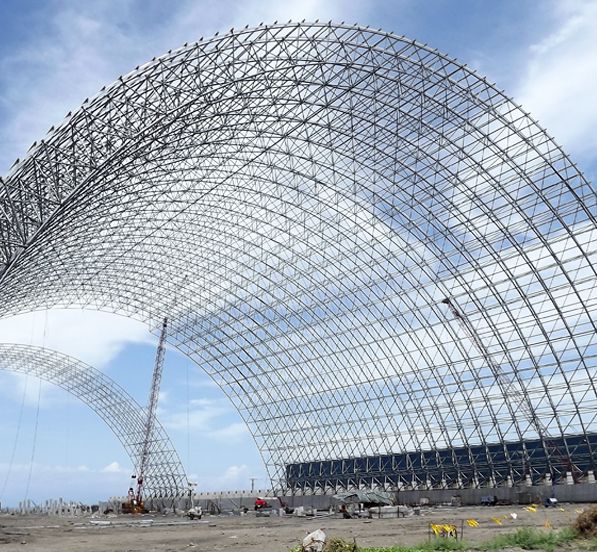

The space frame is square pyramid bolt ball node barrel shell, the bearing style is bottom chord column point to support, totally 52 column points. The bottom of the coal storage space frame is reinforcement concrete foundation, the upper chord is about 3.5mx3.546m,bottom is about 3.5mx3.293m,thickness of the space frame is 2.5m.

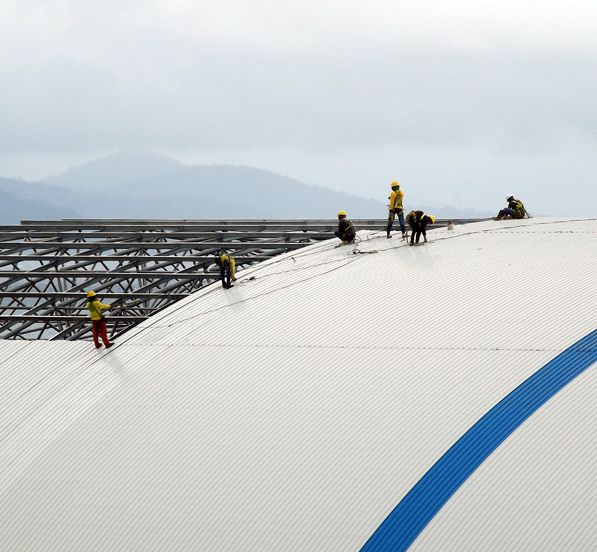

The roof purlin- cold pressed C-shaped steel, the roof panel-color painted pressed steel sheet.

Product specifications

Structure Type:  Light Steel

Application:  Space Frame Coal storage

Design Standard:  GB

Span:  61m

Height:   25.957m

Foundation Height:  4.5m

Wind Zone:  250kph

Seismic Zone:   4(Z=0.4)

Certificates:  ISO, CE, SGS

Steel Material:  Q235B/Q345B,45#,40Cr

Surface Treatment: Anti-rust treatment with epoxy zinc rich primer and PU finish. Roof color steel sheet.

Shipping:  Shipped in 60days after the payment

Installation:  Supervision installation

Warranty:   1 years

Packaging Details: Special package for space frame structure materials
