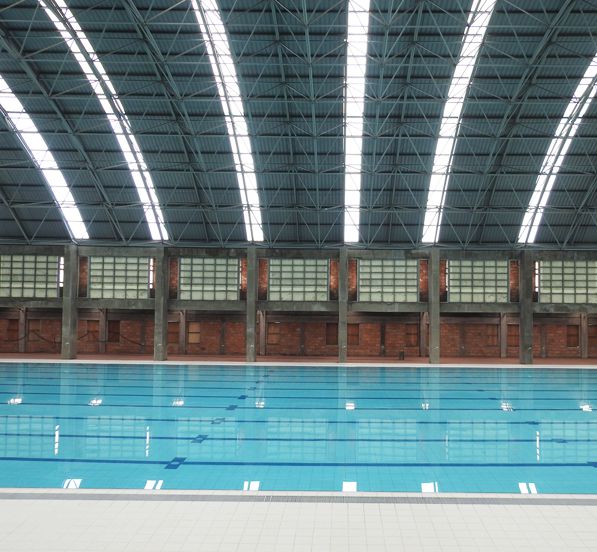

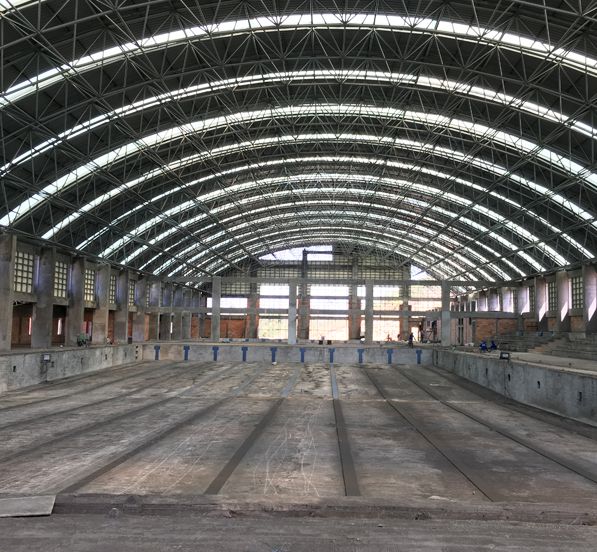

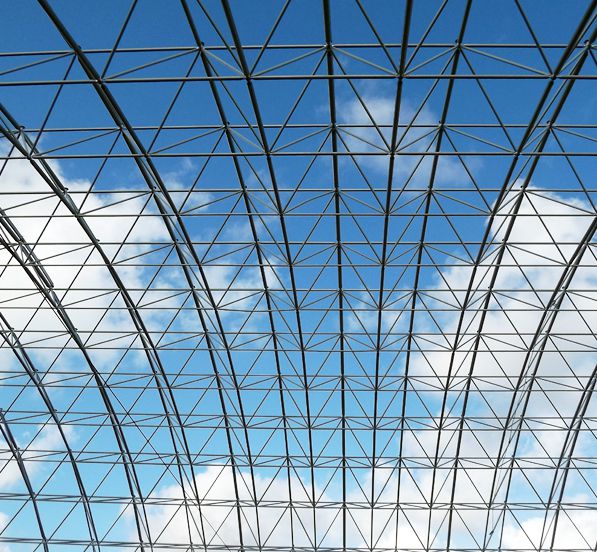

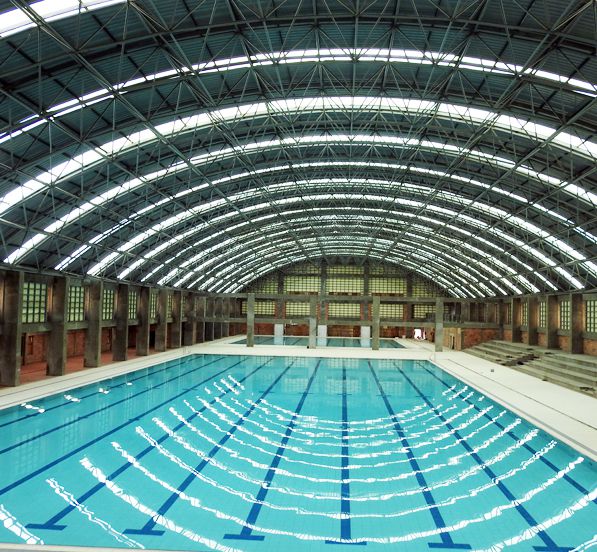

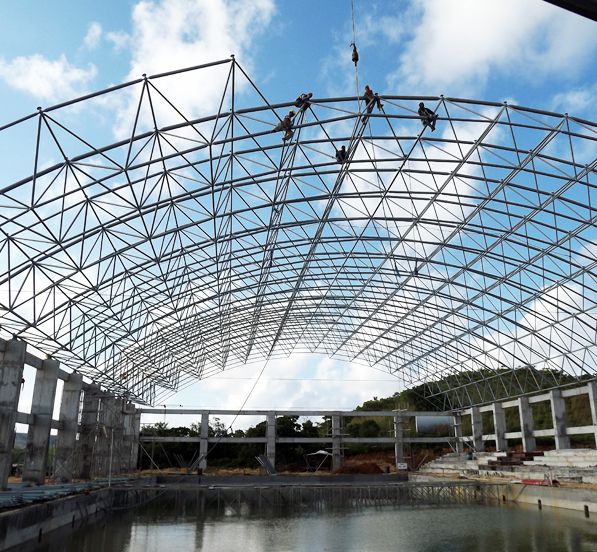

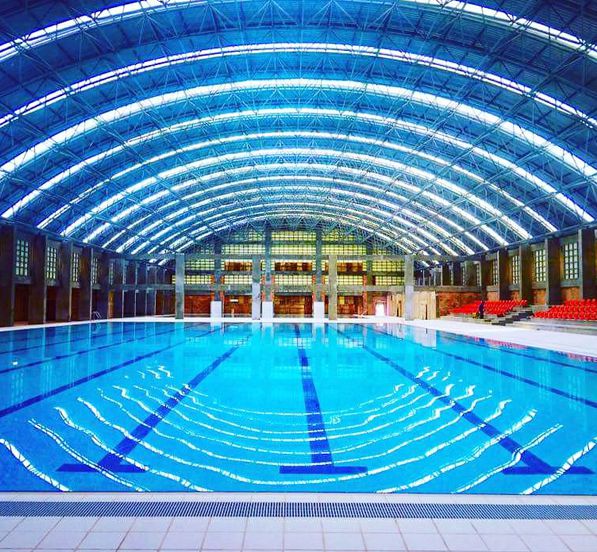

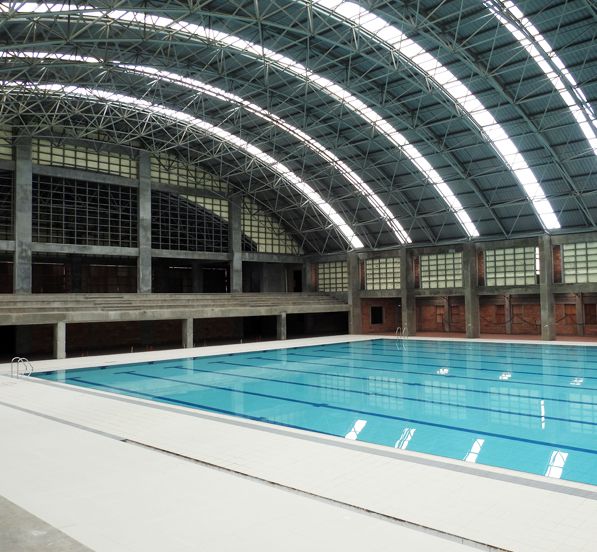

The swimming pool is located in Semirara, Philippine which was finished in 2015. The roof structure adopts the space frame structure which is a truss-like, lightweight rigid structure constructed from interlocking struts in a geometric pattern. The roof panel adopts corrosion resistant plate which has excellent anti-corrosion performance.

Technical Advantages

The design for the swimming pool roof reflects LF unique design advantages. Firstly, this design is in strict accordance with the Philippine design standard NSCP which has high requirements about the wind load data. The wind load data we choose reaches to 250km/h, so through Typhoon such as Haiyan, our structure is still very strong. Secondly, in the terms of the support part, we adopt a special treatment to lower the reaction data, thereby reducing the base cost. Thirdly, the owner wants to lengthen the structure on the base, after our detailed calculation and analysis, we lengthen the structure in the middle part, not at the end part. Fourthly, we adopt the curved arc purlin which makes the surface more smooth and beautiful. The smooth surface is LF patent.

Product specifications

Structure Type:  Light steel

Application:  Swimming pool roof

Design Standard: NSCP standard

Length:78m

Width:41.92m

Wind Zone:  225kph

Seismic Zone:  4(Z=0.4)

Certificates:  ISO, CE, SGS

Steel Material:  Q345B

Surface Treatment:  Hot dip galvanizing and paint

Roof panel:  FRP day-lighting sheet

Shipping:  60 working days after designing drawings are confirmed with signature

Installation:  Supply supervision

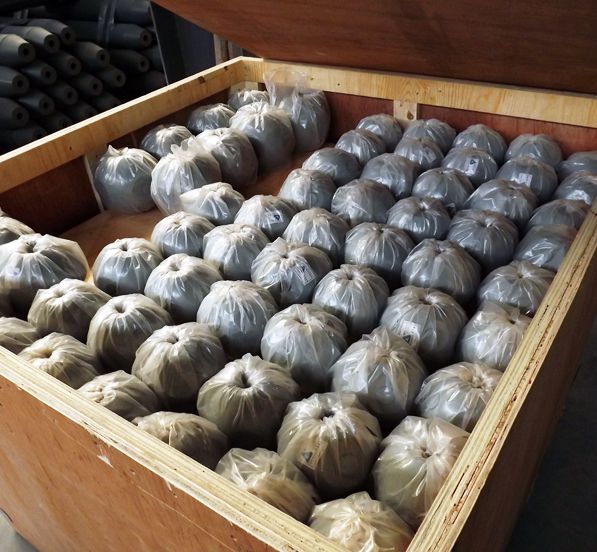

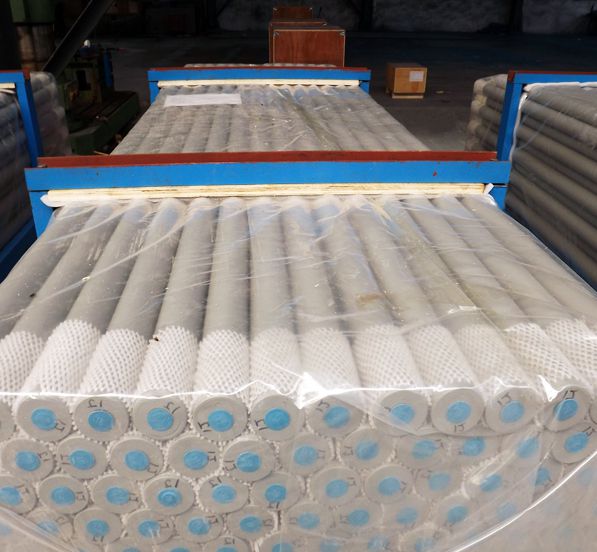

Packaging Details:  Use packing rack for large steel components, small components are putted into wooden case.

Design life:  50 years
