Product CategorySteel Trusses in Jining Jinxiang Exhibition Hall

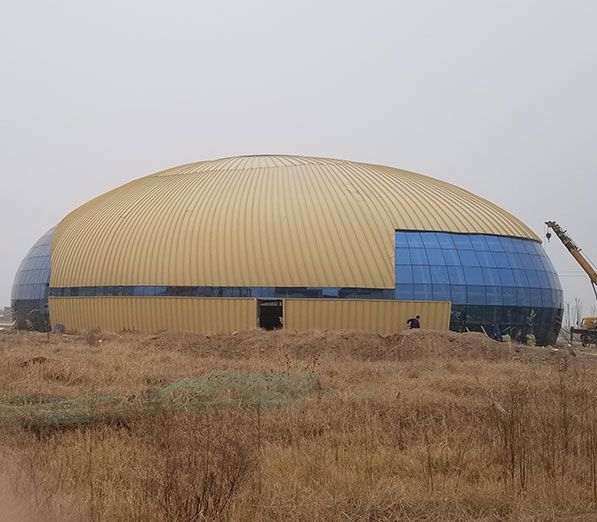

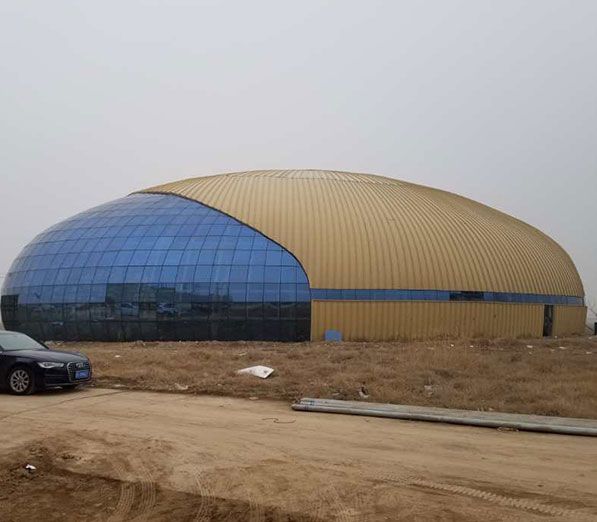

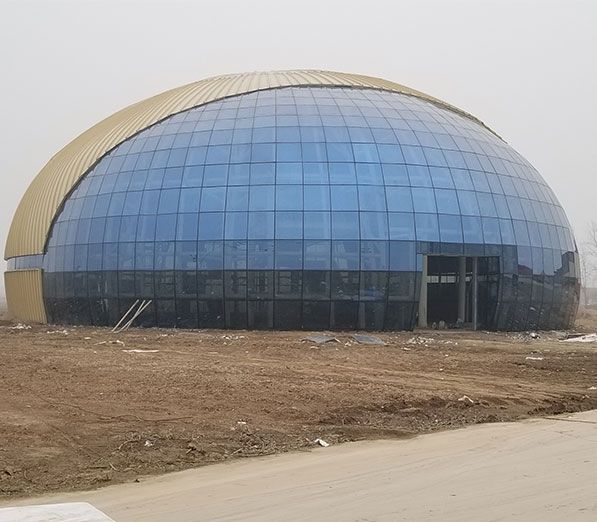

The projected area of Jinxiang Exhibition Hall is about 2300m², and the roof adopts steel truss structure. The vertical length of the exhibition hall is 55m and the horizontal length is 42m. The clearance height of the exhibition hall is 15m, which is an elliptical building;
(1)The use of steel pipe trusses as the roof structure of the exhibition hall has many advantages, not only to meet the requirements of the large span of the exhibition hall but also as a structural system, it meets the development needs of the large-span space truss structure, creating a perfect combination of aesthetics and mechanics design concept

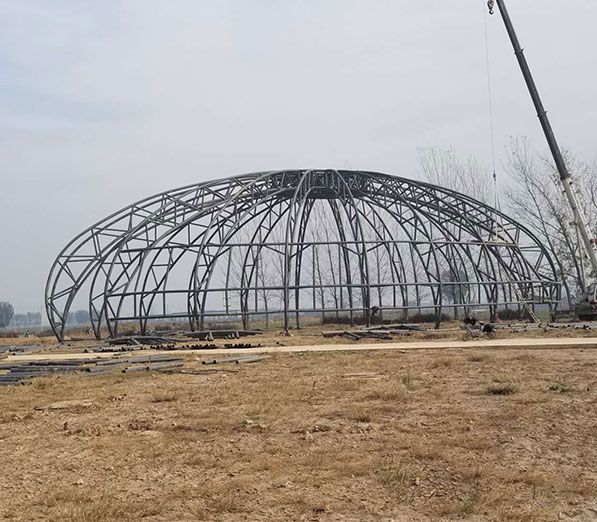

(2)The steel pipe truss structure is completed from the hoisting of the site to the completion of the whole structure, as well as the completion of the roof and wall panels, and the construction time is short.
(3)The node form is simple, the force transmission is direct, and the structure is simple and smooth.
(4)The nodes are all-welded nodes, the construction is simple and the material is saved.
(5) High stiffness, good compressive and torsional performance of steel pipe.
(6)The roof adopts an arc shape, and the force is more reasonable.
LF space frame company provides complete design and fabrication services from consultation to engineering and from manufacturing to installation.
| Application: Exhibition Hall |
| Structure type: light steel structures |
| Span: 55m |
| Height：15m |
| Design life: 50 years |
| Processing Service: Bending, Welding, Decoiling, Cutting, Punching |
| Pricing manner: One price, no increase in the middle |
| Material:Q235B/Q355B,45#,40Cr |
| Roofing:0.8mm aluminum magnesium manganese plate + laminated glass |
