Product CategoryJiangxi Shangrao Tobacco Company Cigarette Distribution Center Steel Space Frame Workshop;

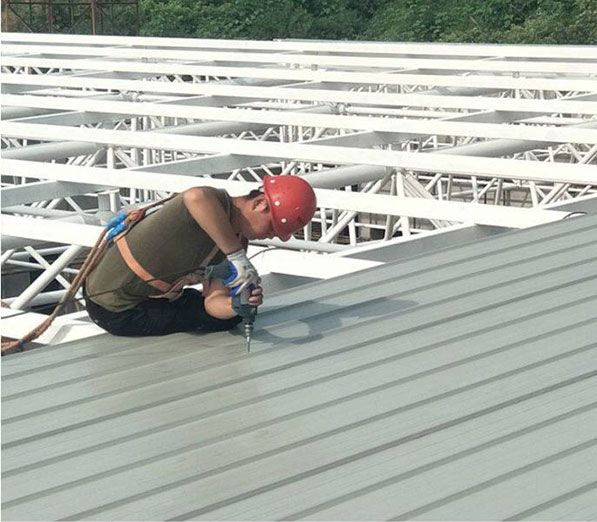

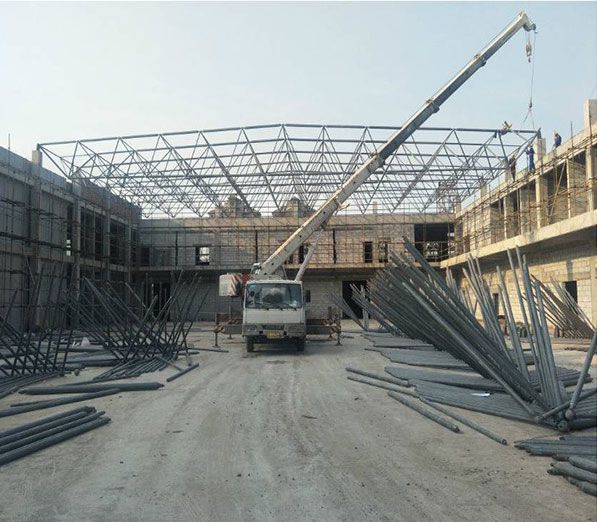

The roof of the distribution center workshop adopts a steel structure space frame structure；
The reasonable service life of the space frame structure design is 50 years.

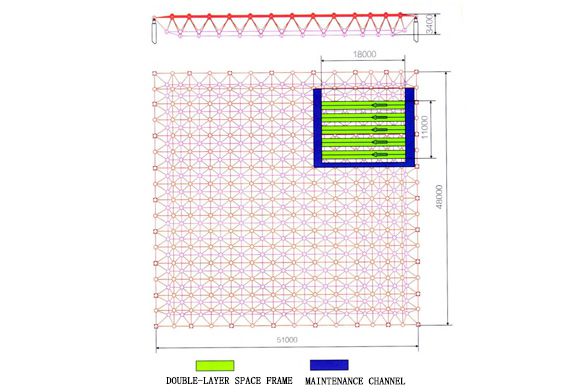

| Space truss roof area: | 5 1m×48m=2448 ㎡ |

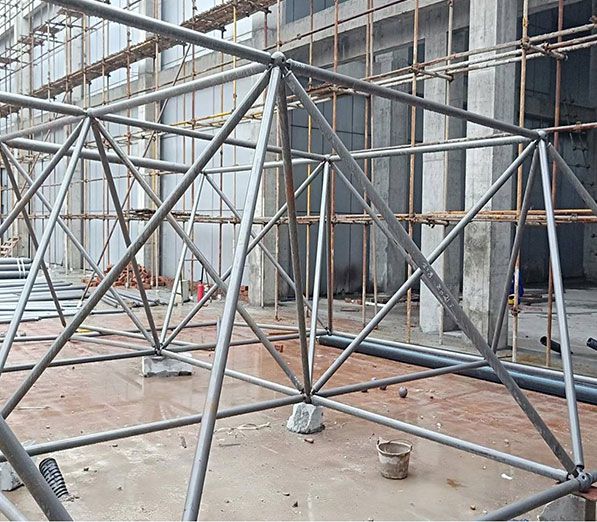

| Space frame structure: | Welded ball joint double-layer space frame |
| Support form: | The support column is distributed around the periphery |
| Double-layer space frame height: | 3.4m |
| Clearance height under space frame: | 7.2m |
| Allowable load of space frame: | 2.8kN/㎡ |
| The allowable tensile force of a single ball node: | 30kN/ball |

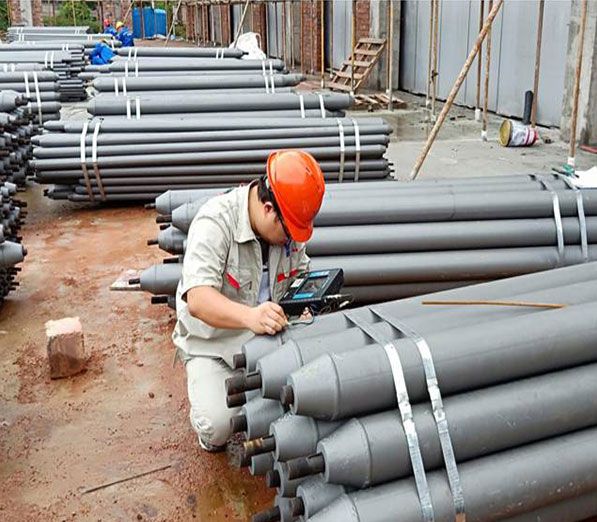

| Material： | Welded ball joint Q235B; Rod Q235B high frequency welded pipe |
