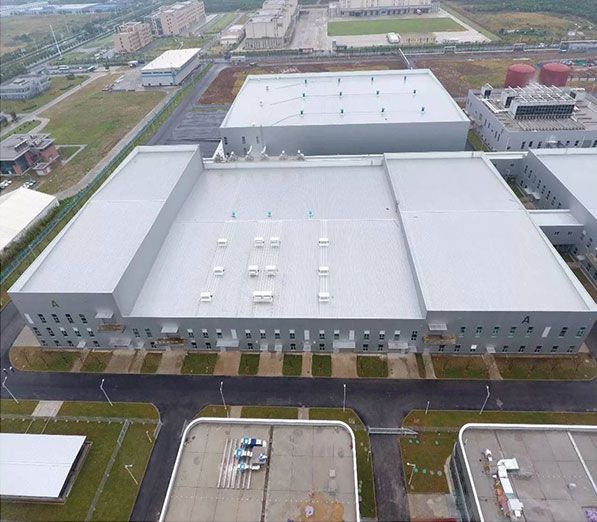

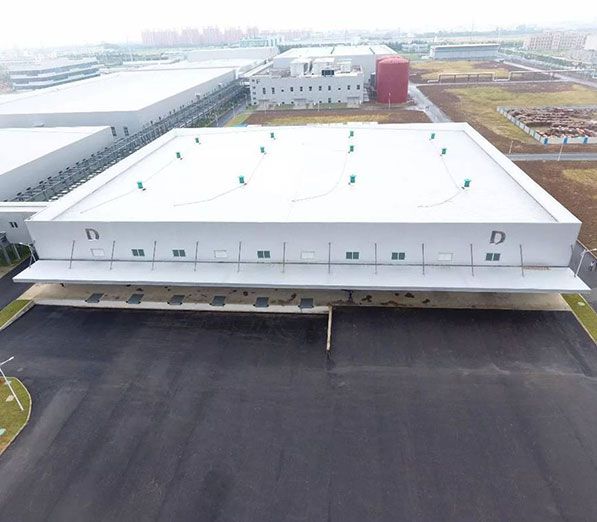

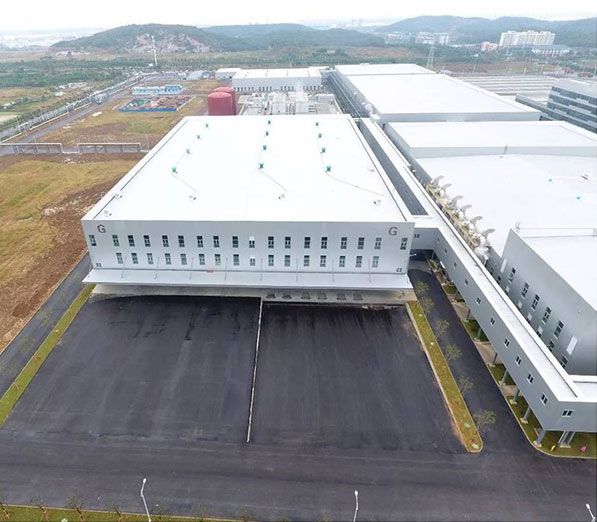

LF is good at large span warehouse workshop projects

(1) Large-scale steel structure workshops generally require large space due to the requirements of process layout. The structure usually adopts frame structure, and frame shear structure can also be used when the process conditions permit.

(2) The principle of structural layout is: try to make the column space frame symmetrical and evenly arranged, so that the center of stiffness of the house is close to the center of mass, so as to reduce the space torsion effect of the house, and the structural system requires simplicity, rules, and clear force transmission. Avoid concave corners and shrinkage with stress concentration and sudden deformation, as well as overhang and adduction with excessive vertical changes, and strive for no or less sudden changes in stiffness along the vertical direction.

Do You Have A Construction Project We Can Help With? For more details about LF large span warehouse workshop structure, just email via marketing01@cnxzlf.com

Chat with us Leave a message

Warehouse Design Points

The rapid rise of the construction industry has made the building structure begin to develop in the direction of large span and large space, and the number of large factory buildings has begun to increase significantly. To ensure the application quality of the space frame structure in large workshops, and to ensure that the construction of the workshop can meet the requirements of various standards and use needs

(1) there should be few or no earthquake-proof joints for the workshop in the earthquake area

The expansion joints of large steel structure workshop in earthquake area are in one when the workshop is long, the following structural measures and construction measures should be taken to reduce the expansion joints and earthquake-proof joints, every 40m, a post-poured band of 800mm ~ 1400mm width is set up, and the post-poured band is located in the section with the least influence on the structure, in the top floor, the bottom floor, the gable wall and the wall between the end of the inner longitudinal wall, etc., increase the ratio of reinforcement; thicken the roof insulation layer or set up an overhead layer to form a ventilated roof.

(2) Control the periodicity of horizontal and vertical frames

Because the workshop building span direction dimension is big, the column is few, but the column distance direction dimension is small, the column is many. Generally, it is lateral control so that the vertical and horizontal seismic capacity is roughly the same, not only conducive to seismic but also more economical and reasonable design.
