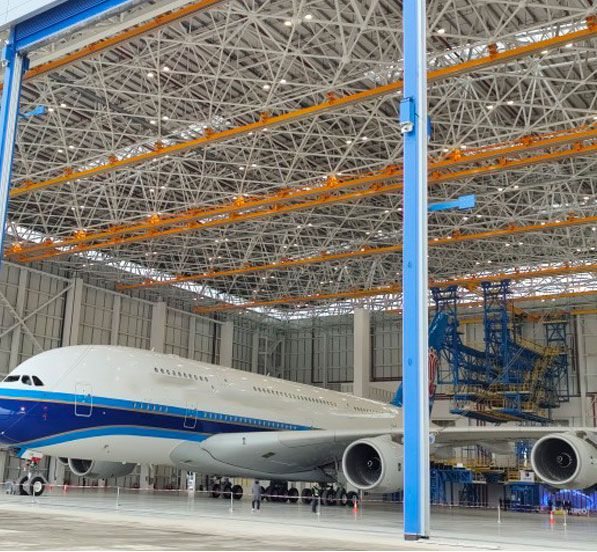

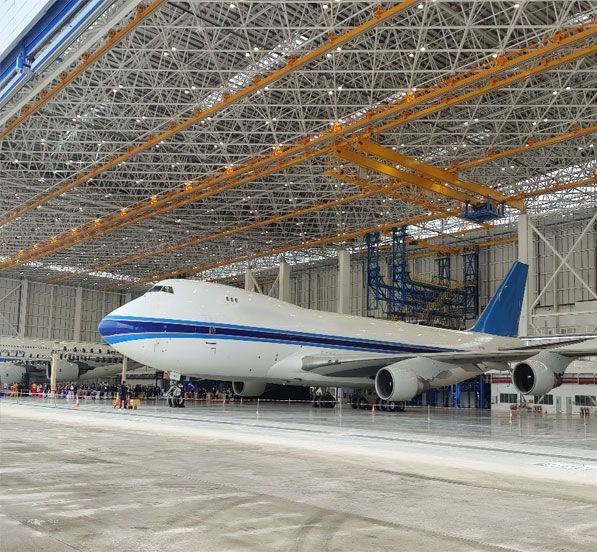

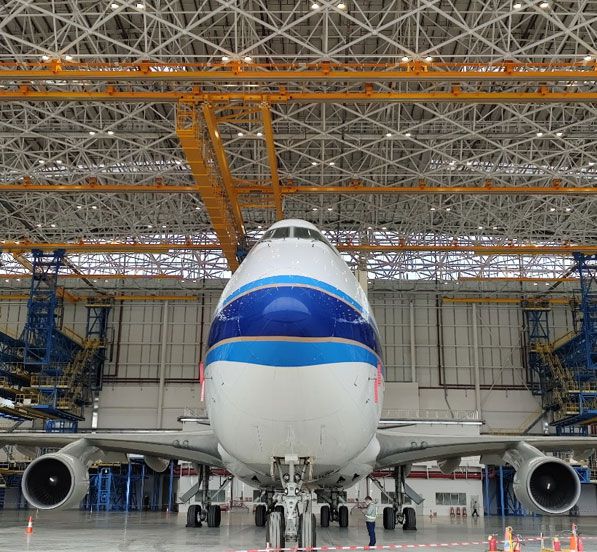

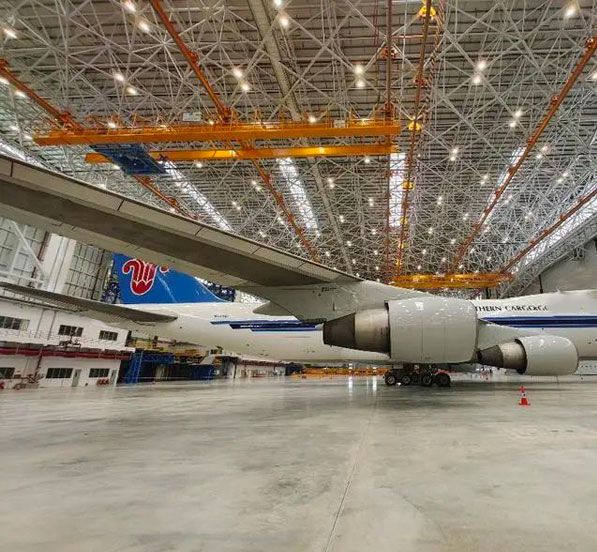

1、The total planned land area of ​​the prefabricated steel structure aircraft hangar is 50,948.8 square meters, and the entire construction area is 98,000 square meters, of which the hangar hall area is 33,000 square meters. The hangar hall has a clear height of 30m and a span of 95m+144m+95m. It can accommodate 1 Airbus A380, 3 Boeing B777, 2 Boeing B787, and 5 narrow-body aircraft simultaneously, equivalent to the size of 4 football fields;

2、The prefab hangar building adopts a three-span continuous arched steel structure roof, with a total span of 334 meters and a depth of 107 meters;

3、The steel structure roof space frame is 107 meters wide, but its depth is only 89.5 meters;



Technical Advantages

Aircraft hangar construction adopts the structural design of three-side support and one-side cantilever so that the steel structure of the maintenance aircraft hangar and the civil construction of the hangar annex can be constructed at the same time. This design optimization saves 25% of the steel structure consumption and shortens the construction period.

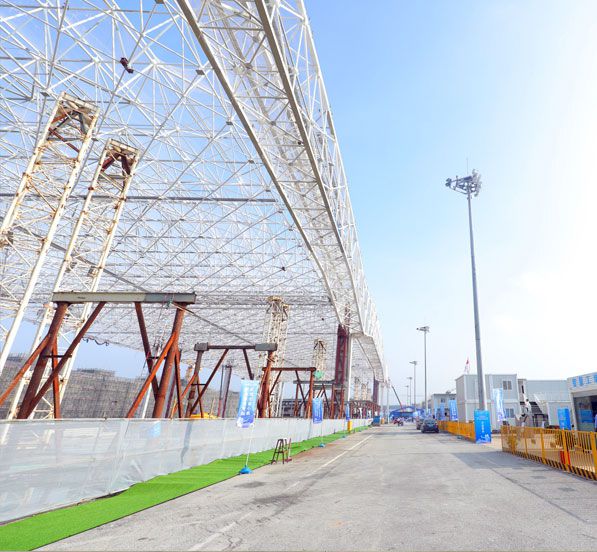

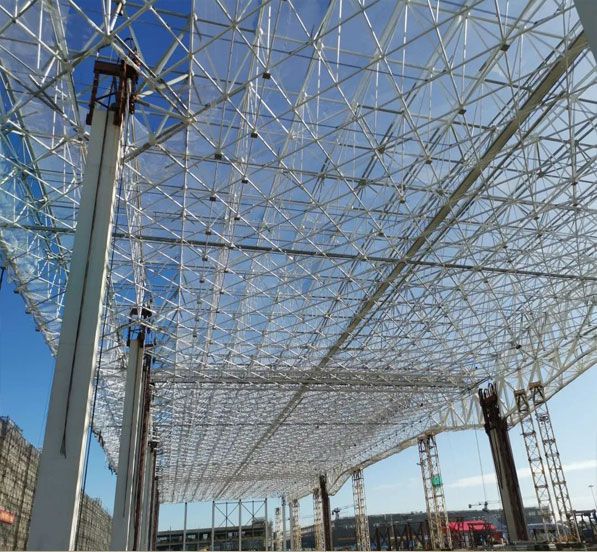

The large-span steel aircraf hangar adopts the quadrangular pyramid welded ball space frame and the gate truss structure. The structure is a two-layer inclined quadrangular pyramid space beam, which partially transitions to three layers (the transition layer adopts an orthogonal positive space frame, and a total of 3483 welded balls are used. A total of 21,360 various steel structure rods, the total amount of steel structure is 5,100 tons, and the total lifting weight is 4,786 tons. It is equivalent to lifting 798 medium-sized trucks at the same time.

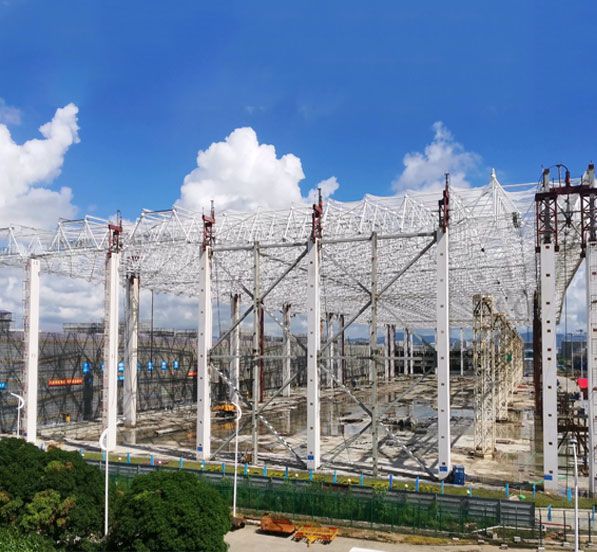

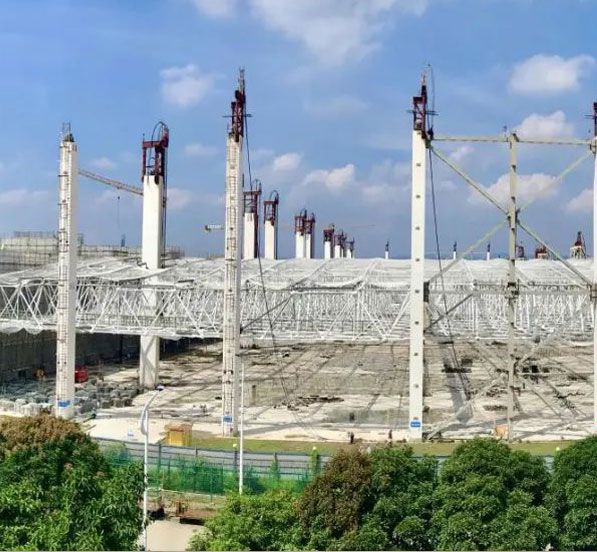

The construction of the steel structure hangar roof adopts “in-situ ground assembly and two-stage overall lifting”, and the overall lifting of the steel structure with a total weight of about 5,000 tons has been completed, with a full lifting height of 30 meters.

Product Specifications

Structure Type: Light Steel Structure
Application: Aircraft Hangar Roof Construction
Design Standard:  ASCE
Steel Material:  Q235B
Span:334(95m+144m+95m)
Depth: 107 m
Height:30m
Roof Cladding: Steel Color Sheet
Purlin: C.Z Shape Steel Channel
Drawing design: SFCAD PKPM MTS 3D3S
Brand Name: LFBJMB
