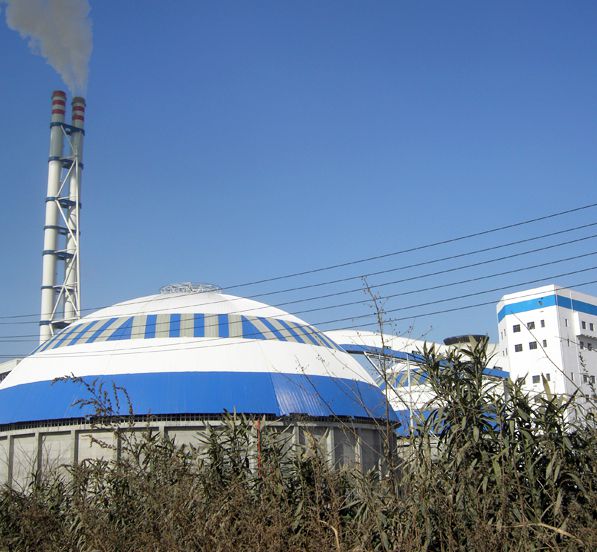

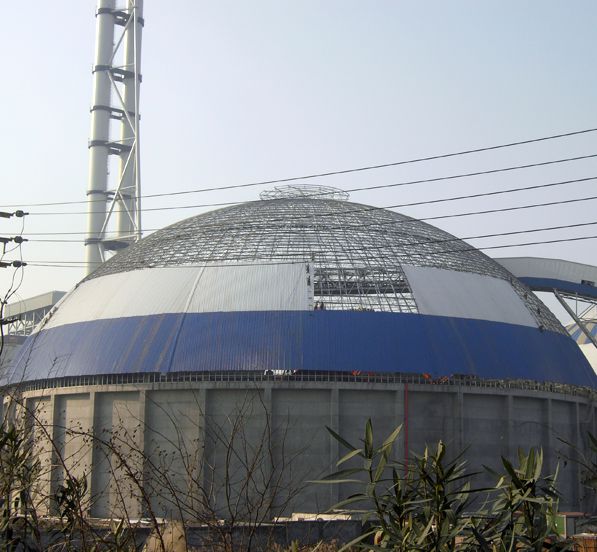

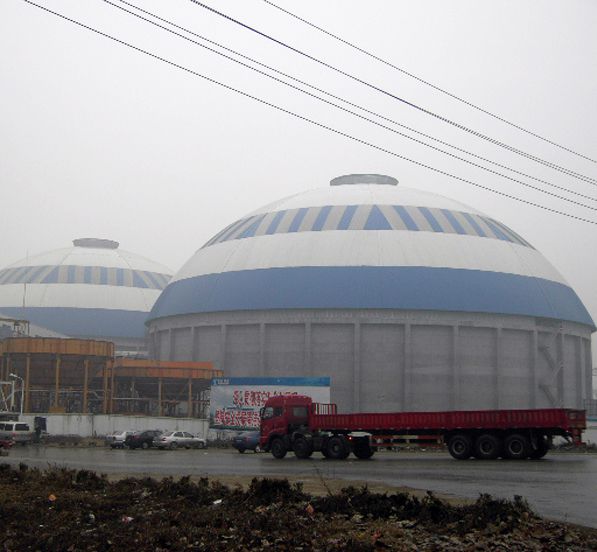

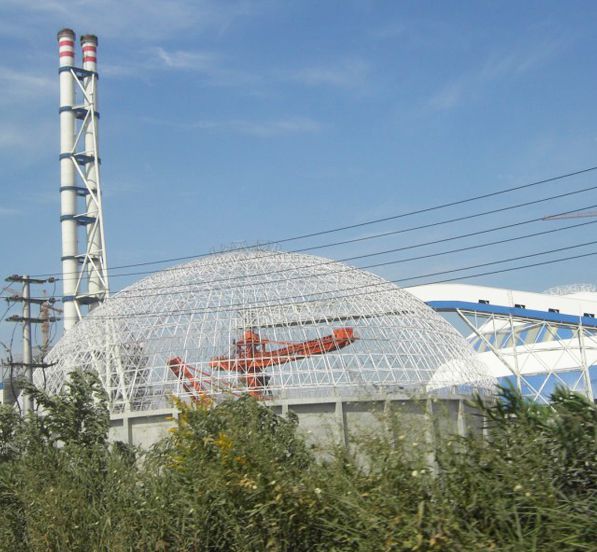

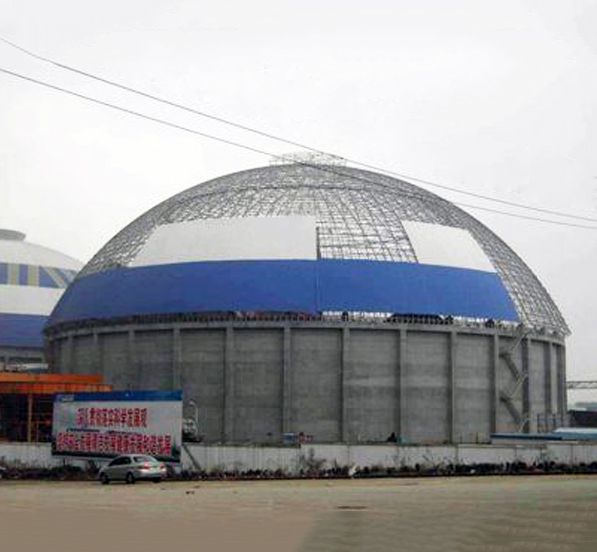

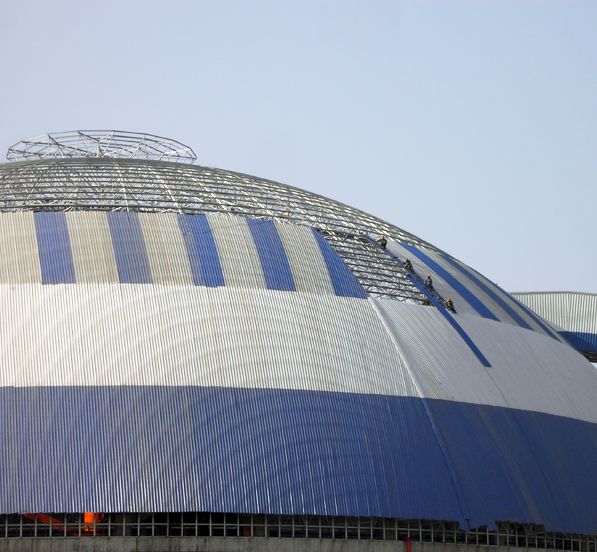

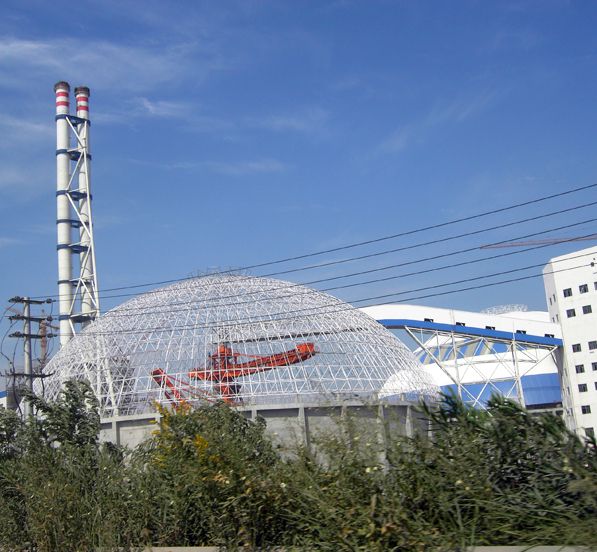

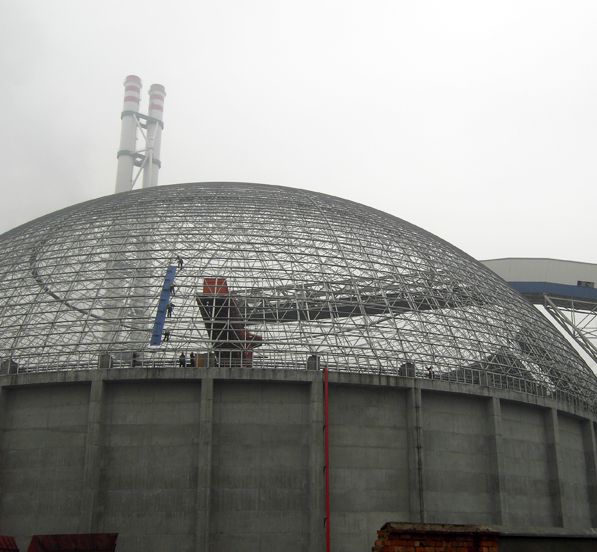

Nanjing Jinling Power Plant Dome Coal Storage request a space structure with large span, we apply high-altitude cantilever installation construction technology on mini-crane on the installation of the dome;firstly we assembly the part space frame into some small units on the ground,then process the connection of nodes by high-altitude workers and carry on the space of whole full joint displacement; the construction method make the whole process economical,practical,convenient efficient and less safety issue;

Technical Advantages

Basing on the advanced industrial technology and proper construction process, here’s no scaffold and support unit needed for construction,no affects on the center column and stacker,it also make the coal storage and the stack can be processed at the same time,which have big significance in saving cost and construction technology.

Product Specifications

Structure Type:  Light Steel

Application:  Coal Storage Shed

Designed Capacity:130000T

Span:112.2m

Height:68.28m

Foundation Height:17.5m

Wind Load:0.45KN/m2

Snow Load:0.65KN/m2

Seismic Acceleration :0.10g

Certificates:  ISO, CE, SGS

Steel Material:  Q235B/Q345B,45#,40Cr

Surface Treatment:  Hot-dip galvanization (or zinc spray)

Roof Panel:  Color steel sheet (SMP finish)

Natural Lighting roof:FRP

Shipping:  60 working days after designing drawings are confirmed with signature

Installation:  Supply supervision

Packaging Details:  Use packing rack for large steel components, small components are putted into wooden case.

Design Life:  50 years
