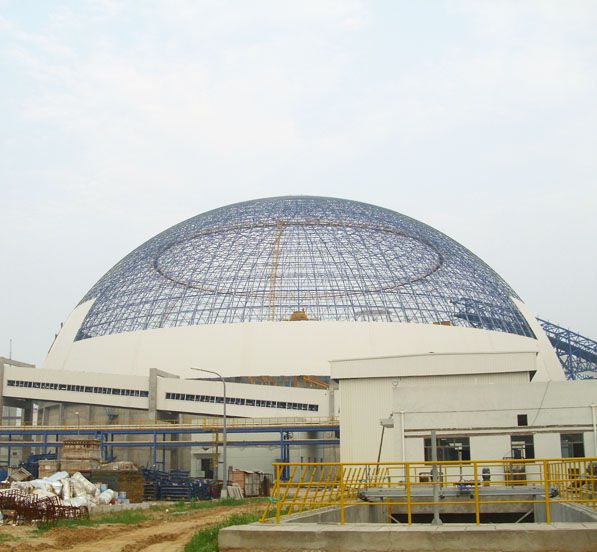

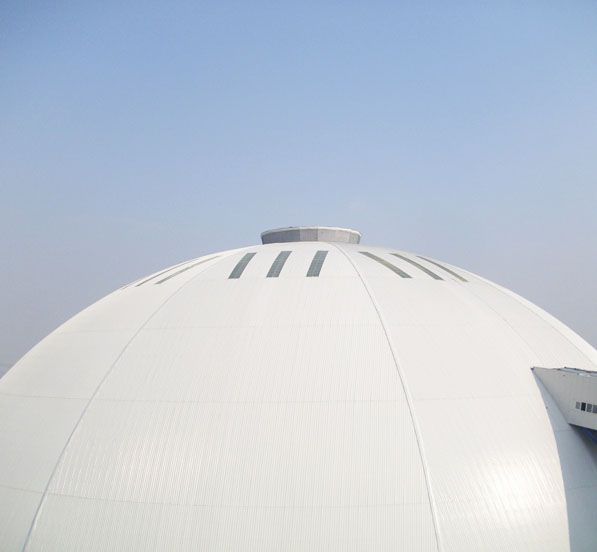

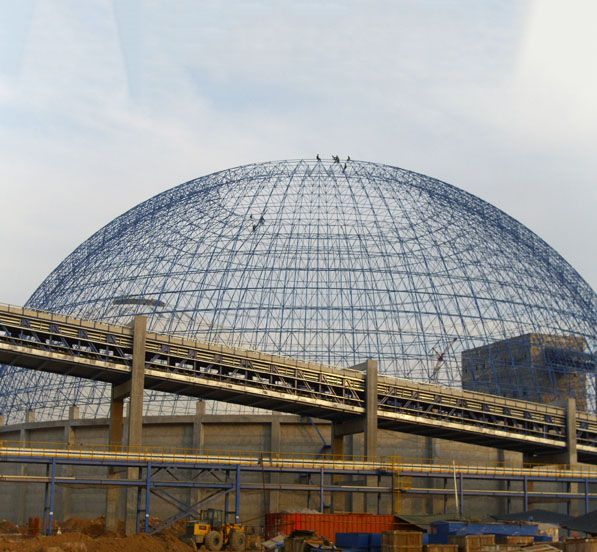

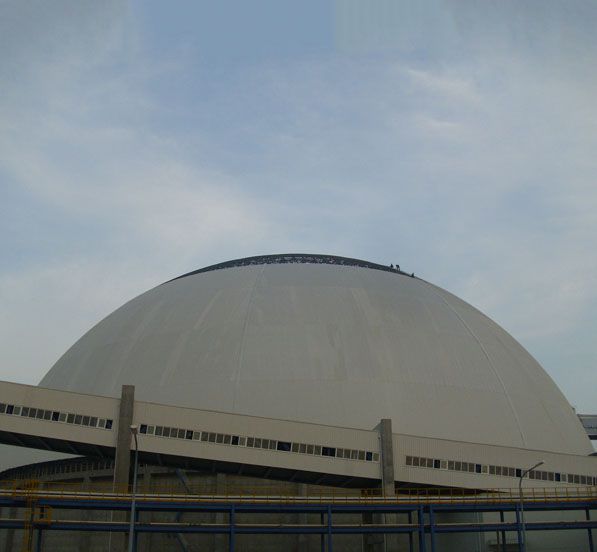

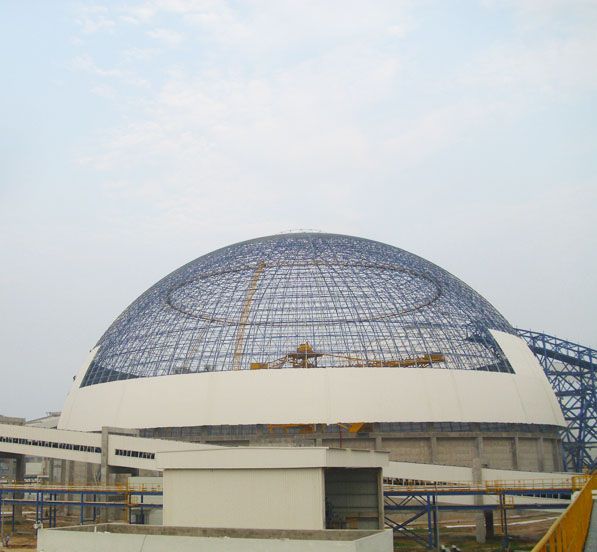

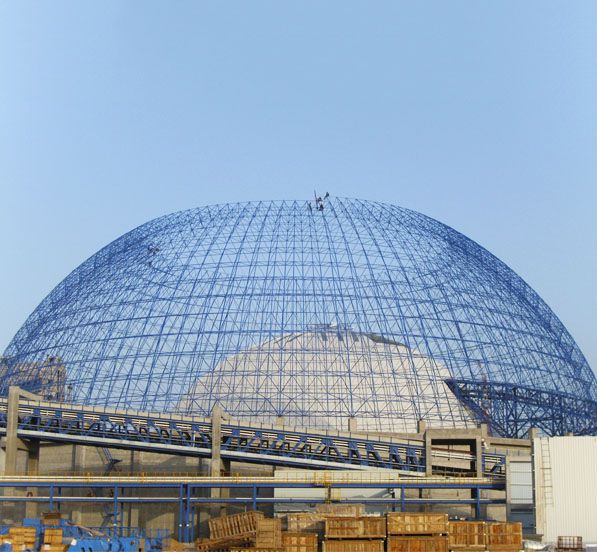

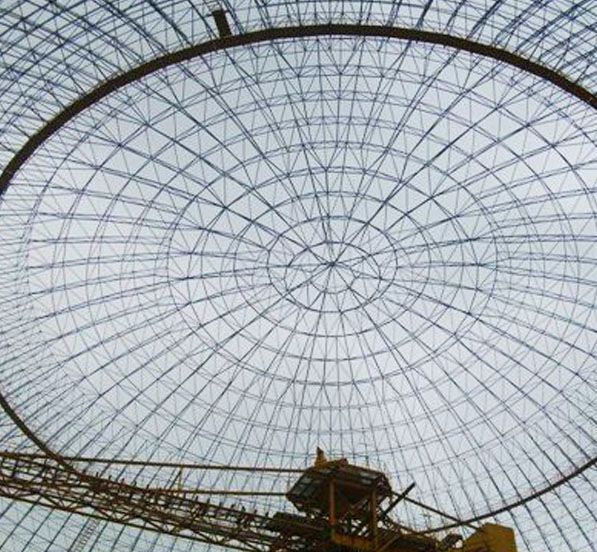

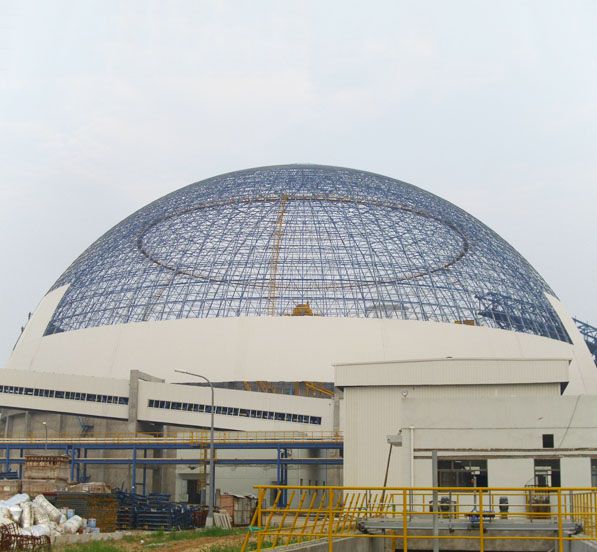

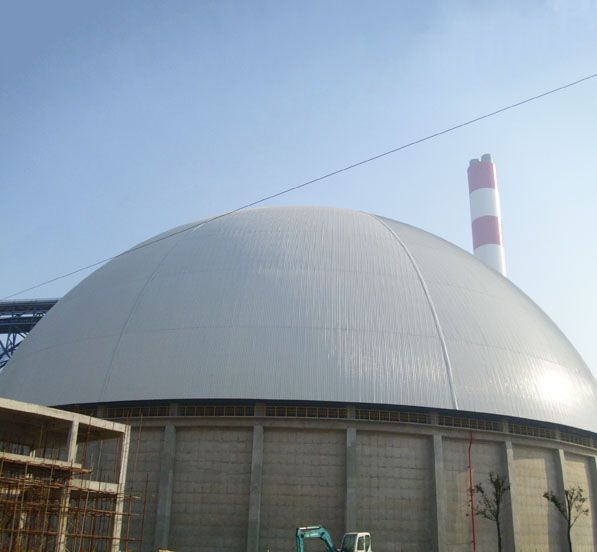

MengJin Power Plant Dome Space Frame Coal Storage Shed (2 sets)
MengJin Power Plant Dome Space Frame Coal Storage Shed (2 sets)
MengJin Power Plant Dome Space Frame Coal Storage Shed (2 sets)
MengJin Power Plant Dome Space Frame Coal Storage Shed (2 sets)
MengJin Power Plant Dome Space Frame Coal Storage Shed (2 sets)
MengJin Power Plant Dome Space Frame Coal Storage Shed (2 sets)
MengJin Power Plant Dome Space Frame Coal Storage Shed (2 sets)
MengJin Power Plant Dome Space Frame Coal Storage Shed (2 sets)
MengJin Power Plant Dome Space Frame Coal Storage Shed (2 sets)
MengJin Power Plant Dome Space Frame Coal Storage Shed (2 sets)
MengJin Power Plant Dome Space Frame Coal Storage Shed (2 sets)
MengJin Power Plant Dome Space Frame Coal Storage Shed (2 sets)
MengJin Power Plant Dome Space Frame Coal Storage Shed (2 sets)
MengJin Power Plant Dome Space Frame Coal Storage Shed (2 sets)
MengJin Power Plant Dome Space Frame Coal Storage Shed (2 sets)
MengJin Power Plant Dome Space Frame Coal Storage Shed (2 sets)
MengJin Power Plant Dome Space Frame Coal Storage Shed (2 sets)
MengJin Power Plant Dome Space Frame Coal Storage Shed (2 sets)

MengJin Power Plant Dome Space Frame Coal Storage Shed (2 sets)

With the development of the world electric power industry, the dry coal storage shed has been widely constructed and studied. Due to the higher environmental requirements and limits of restricted land , the bulk way of coal has to be replaced by closed storage shed, which meets the trend of energy saving and environmental protection. Recently, the construction of dry coal storage shed has been progressed in china.

It’s suitable for the roof to have large space structure as the dry coal storage shed has a large space span, and it fully utilizes the strength itself,the light weight,material saving,high seismic performance,which speed up the construction period, landscaping the appearance,optimized the structure and make a modern and wonderful architecture.

Product Specifications

Structure Type:  Light steel

Application:   Power plant coal storage shed

Designed Capacity:160000T

Span:121.40m (Diameter)

Height:75.292m

Foundation height:21.90m

Wind Zone:  0.45KN/m2

Snow load:0.45KN/m2

Seismic acceleration:0.118g

Certificates:  ISO, CE, SGS

Steel Material:  Q345B

Surface Treatment:  Hot dip galvanizing and paint

Roof panel:  Color steel sheet (PVDF finish)

Natural lighting roof:FRP

Shipping:  45 working days after designing drawings are confirmed with signature

Installation:  Supply supervision

Packaging Details:  Use packing rack for large steel components, small components are putted into wooden case.

Design life:  50 years
