Bulk Material Handling and Storage System

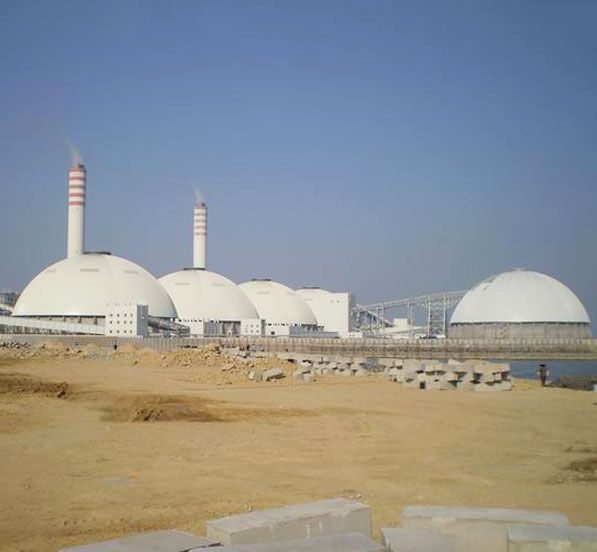

Project Name:Coal Storage System of Houshi Power Plant(7 sets)
Owner:Huayang Electronics Co., Ltd.
Status:Completed in 2007&2014
Your current browser version is too low, in order to bring you a better browsing effect, please use a higher version browser
Product CategoryBulk Material Handling and Storage System

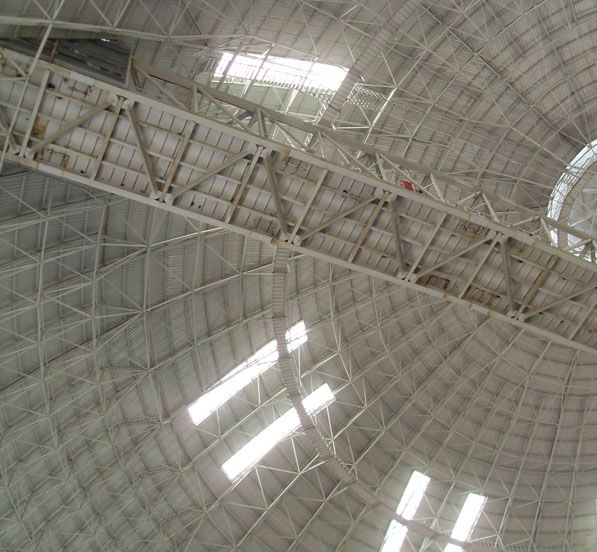

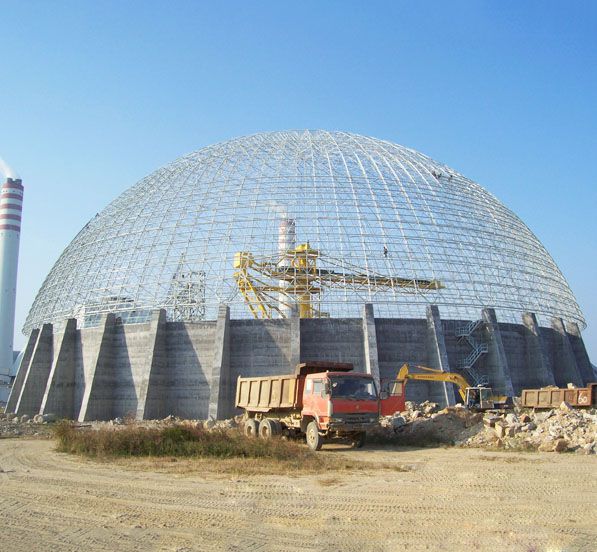

Project Name:Coal Storage System of Houshi Power Plant(7 sets)
Owner:Huayang Electronics Co., Ltd.
Status:Completed in 2007&2014
Many industrial manufacturing fields have large bulk raw materials storage demands, such as coal, limestone, clinker, alumina, coke, or other aggregates which need to be protected from the environment but without hampering operations many times. As one of the common ways to store large volume bulk material, Dome shape storage has below advantages :
1. Strong And Durable: Dome shape storage is stronger and more durable than normal box shape structures and the lifetime is longer. It is effective to resist natural factors such as fire, water, and wind also.
2. Energy Efficiency: The dome structures are extremely tight, with almost no internal support demands;
3. Minimum Maintenance: These structures require minimal maintenance as they are least affected by the various natural elements.
4. Cost-effectiveness: The cost of the structures is much lower than the box shape; In addition, the low energy and maintenance costs also help to control cost.
LF is professional at dome-shaped structures, it has several special advantages as follows:
1. Design: LF is equipped with the most advanced design software and system, and has professional technical engineers.
2. Fabrication: LF has an excellent quality control system of fabrication, which can control the fabrication effectively to meet clients’ requirements.

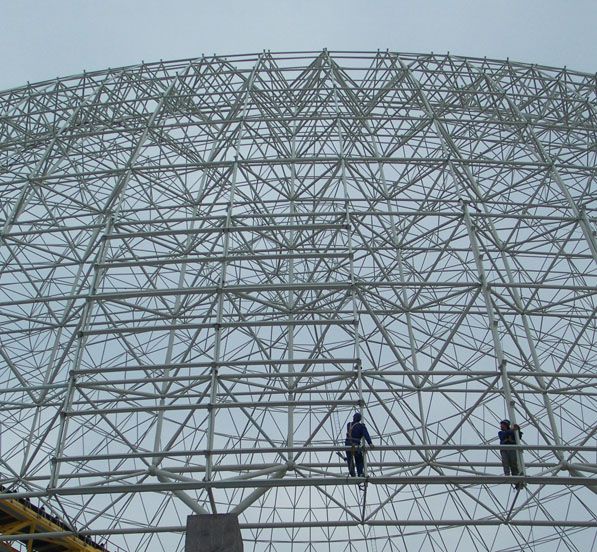

3. Installation: Engineers of LF are all experts in the field of steel structure and spatial structure with many years of construction experience.
What needs to be emphasized, LF is an expert in the construction in a long span(D>100m) which is replacing traditional H-type steel structures with absolute advantages of lower cost, more beautiful appearance, and safe structure.
|
Structure Type: Light steel space frame |
|
Application: Coal storage Shed |
|
Storage Capacity：170,000T |
|
Span: 120m |
|
Height：67.79m |
|
Foundation height：17.7m |
|
Wind load：60m/s |
|
Seismic load：8 Dgree |
|
Seismic acceleration：0.20g |
|
Certificates: ISO, CE, SGS |
|
Steel Material: Q355B |
|
Surface Treatment: Hot-dip galvanization (or zinc spray) |
|
Roof panel: Color steel sheet (PVDF finish) |
|
Natural lighting roof：FRP |
|
Shipping: 60 working days after designing drawings are confirmed with signature |
|
Installation: Supply supervision |
|
Packaging Details: Use packing rack for large steel components, small components are putted into wooden case. |
|
Design life: 50 years |
